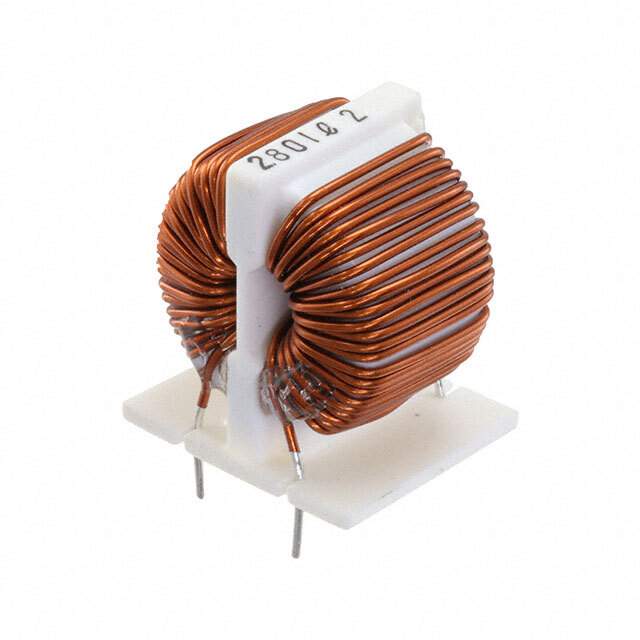

SC-03-30J Real Image
Same model may have multiple batches, images only for reference.

SC-03-30J

Part No SC-03-30J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-03
Other Names 399-SC-03-30J,UALSC0330J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276976-SC-03-30J
Ultra Librarian 3D Model Ultra Librarian SC-03-30J CAD Model

Description

The SC-03-30J is a common mode choke from KEMET's SC series.

  • Type: Power line filter
  • Design: High inductance and low DC resistance
  • Ideal for: Use in AC and DC applications
  • Maximum Current Rating: 3A
  • Voltage Rating: 250V AC/DC
  • Suitable for: Range of electronic devices
  • Mounting: Through-hole
  • Package: Vertical, 4 PC pin
  • Height: 27.00mm
  • Dimension: 25.00mm x 20.00mm
  • Temperature Range: 25°C to 120°C
  • Inductance: 3 mH @ 100 kHz
  • ECCN: EAR99 component
  • REACH: Unaffected
