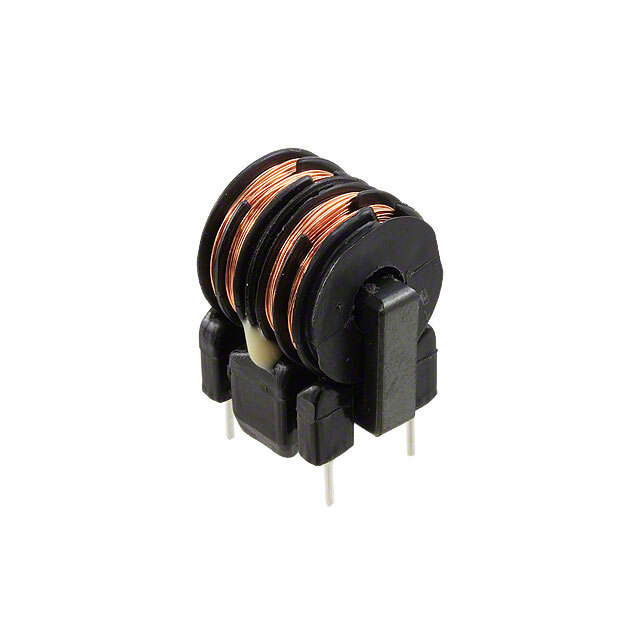

Same model may have multiple batches, images only for reference.
SC-02-20GJ Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SC-02-20GJ

Part No SC-02-20GJ
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 2MH 2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 80mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Through Hole
Size / Dimension 0.689" L x 0.669" W (17.50mm x 17.00mm)
Height (Max) 0.787" (20.00mm)
Case / Package Vertical, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530652-SC-02-20GJ
Ultra Librarian 3D Model Ultra Librarian SC-02-20GJ CAD Model

Description

N
