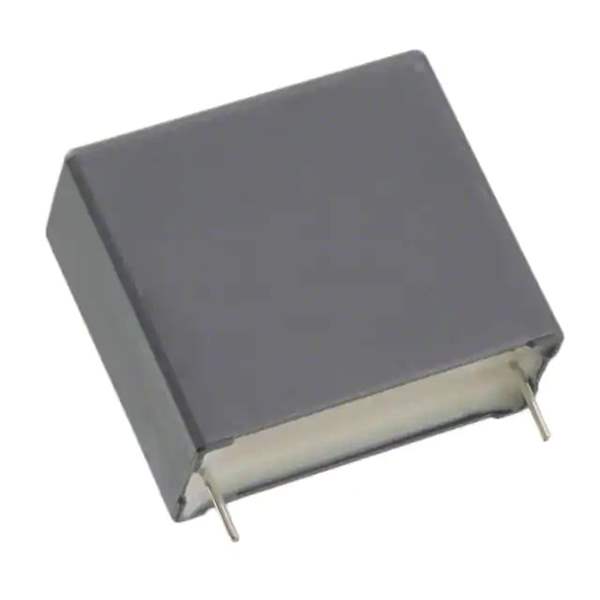

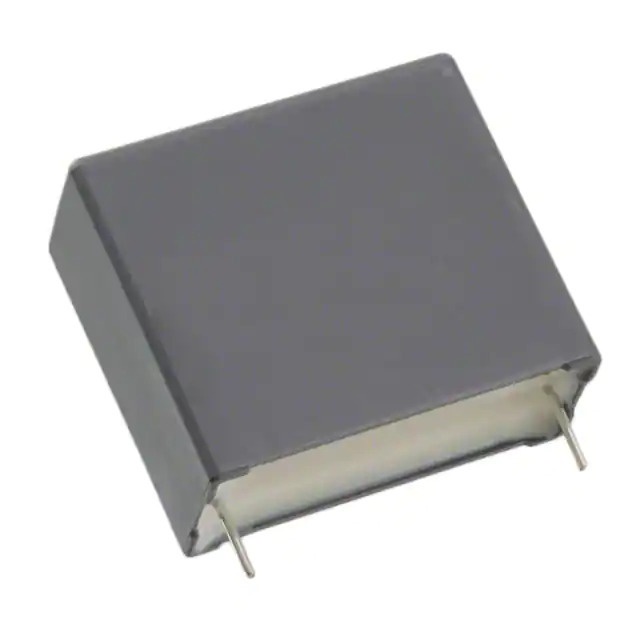

R46KR422000M1M Kemet
Same model may have multiple batches, images only for reference.

R46KR422000M1M

Part No R46KR422000M1M
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2.2UF 20% 560VDC RADIAL / 2.2 µF Film Capacitor 275V 560V Polypropylene (PP), Metallized Radial
Datasheet
R46KR422000M1M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series R46
Package Bulk
Product Status Active
Capacitance 2.2 µF
Tolerance ±20%
Voltage Rating - AC 275V
Voltage Rating - DC 560V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.260" L x 0.551" W (32.00mm x 14.00mm)
Height - Seated (Max) 1.106" (28.10mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Ratings X2
Features -
Base Product Number R46KR
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Win Source Part Number 1360553-R46KR422000M1M
Ultra Librarian 3D Model Ultra Librarian R46KR422000M1M CAD Model

Description

The R46KR422000M1M is a film capacitor from KEMET.

  • Mounting Type: Through Hole
  • Package: Radial
  • Capacitance: 2.2µF
  • Tolerance: ±20%
  • Voltage Rating (AC): 275V
  • Voltage Rating (DC): 560V
  • Rating: X2
  • Application: EMI, RFI Suppression
  • Dimensions: 1.260" L x 0.551" W (32.00mm x 14.00mm)
  • Height Seated: 1.106" (28.10mm)
  • Product Status: Active
  • Packaging: Bulk
  • HTSUS: 8532.25.0010
  • ECCN: EAR99
