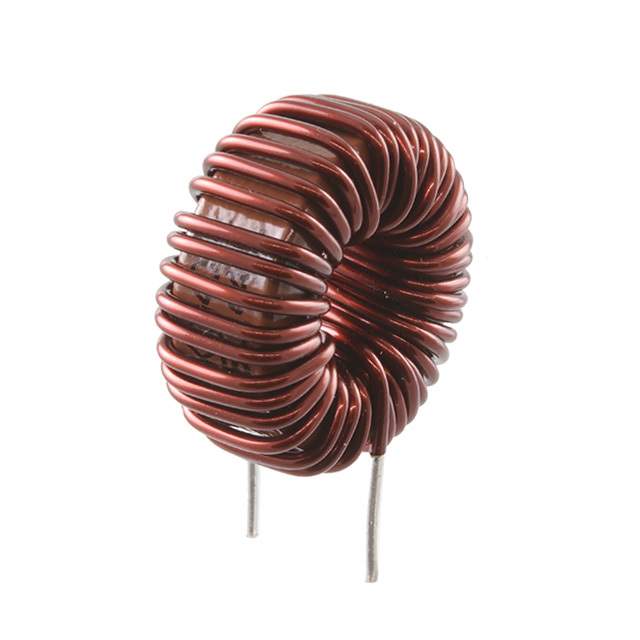

HHBC13-1R2A0081V Real Image
Same model may have multiple batches, images only for reference.

HHBC13-1R2A0081V

Part No HHBC13-1R2A0081V
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series HHBC
Package Bulk
Number of Lines 2
Inductance @ Frequency 81 µH @ 100 kHz
Current Rating (Max) 6A
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Dimension 1.181" Dia (30.00mm)
Height (Max) 1.181" (30.00mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number HHBC13
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1316137-HHBC13-1R2A0081V
Ultra Librarian 3D Model Ultra Librarian HHBC13-1R2A0081V CAD Model

Description

The HHBC13-1R2A0081V is a common mode choke filter that is designed by KEMET.

  • Maximum Current Rating: 6A
  • Inductance: 81 µH @ 100 kHz
  • Mounting Type: Through-hole
  • Package: Vertical, no base, 2 PC pin
  • Diameter: 1.181" (30.00mm)
  • Height: 1.181" (30.00mm)
  • Operating Temperature Range: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
