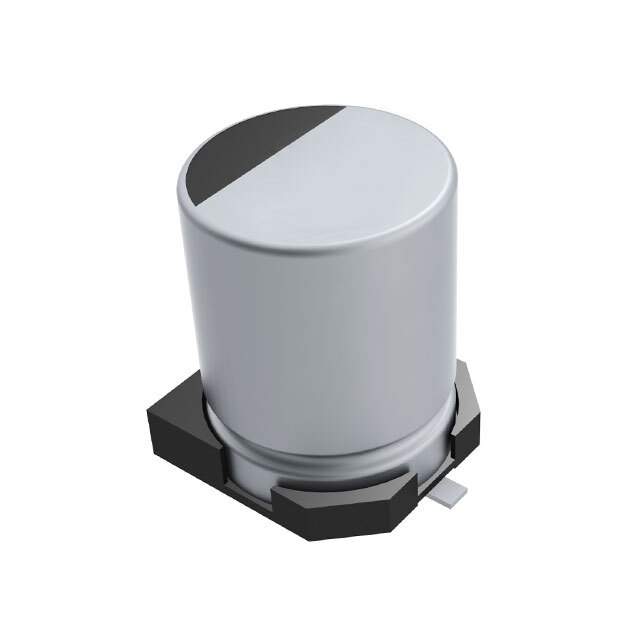

Same model may have multiple batches, images only for reference.

EDK106M035A9BAA

Name: EDK106M035A9BAA
Brand: Kemet
SKU: 1055560
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EDK106M035A9BAA
Manufacturer	Kemet
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 35V SMD / 10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	KEMET
Series	EDK
Package	Tape & Reel
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	24 mA @ 120 Hz
Ripple Current @ High Frequency	30 mA @ 10 kHz
Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.222" (5.65mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EDK106M
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	399-14794-2,399-14794-1,399-14794-6,DK106M035A9BAAKPLP
Standard Package	2,000
Win Source Part Number	1055560-EDK106M035A9BAA
Ultra Librarian 3D Model	Ultra Librarian EDK106M035A9BAA CAD Model

Description

The EDK106M035A9BAA is an aluminum electrolytic capacitor from KEMET.

Capacitance: 10 µF
Voltage Rating: 35V
Tolerance: ±20%
Ripple Current: 24 mA @ 120 Hz and 30 mA @ 10 kHz
Application: General purpose
Temperature Range: -40°C ~ 85°C
Mounting: Tape and reel
Height: 0.222" (5.65mm)
Polarization: Polarized
Package: Radial, can - SMD
Standard Package: 2,000
