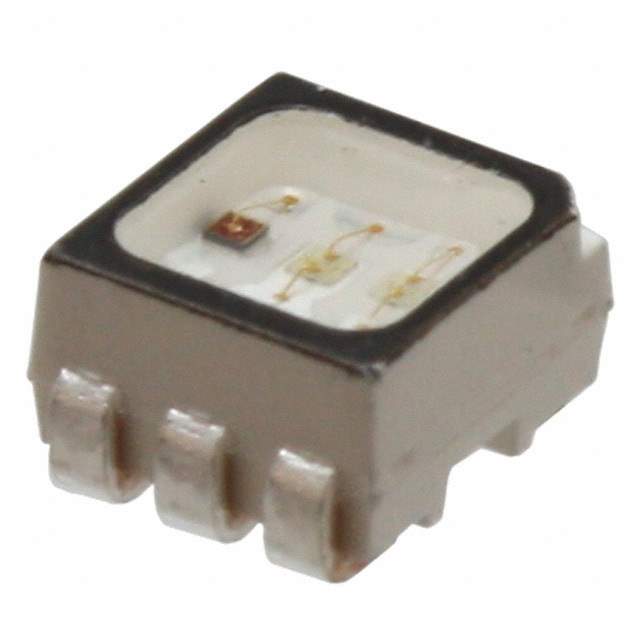

ASMT-YTD7-0AA02 Real Image
Same model may have multiple batches, images only for reference.

ASMT-YTD7-0AA02

Part No ASMT-YTD7-0AA02
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 6PLCC SMD  /  Red, Green, Blue (RGB) 623nm Red, 529nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Red, Green, Blue (RGB)
Configuration Independent
Lens Transparency Diffused
Millicandela Rating 650mcd Red, 1900mcd Green, 384mcd Blue
Lens Style Square with Flat Top
Lens Size 2.30mm
Voltage - Forward (Vf) (Typ) 2.1V Red, 3.1V Green, 3.1V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 623nm Red, 529nm Green, 469nm Blue
Wavelength - Peak 630nm Red, 522nm Green, 465nm Blue
Package / Case 6-SMD, J-Lead
Supplier Device Package 6-PLCC
Dimension 3.00mm L x 2.80mm W
Height (Max) 2.00mm
Base Product Number ASMT-YTD7
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-3219-6,516-3219-1,516-3219-2,ASMT-YTD7-0AA02-ND
Standard Package 2,000
Win Source Part Number 1029172-ASMT-YTD7-0AA02
Ultra Librarian 3D Model Ultra Librarian ASMT-YTD7-0AA02 CAD Model

Description

The Broadcom Limited 1029172-ASMT-YTD7-0AA02 is an LED indication electronic component that is part of the Optoelectronics category.

  • Colors: Red, Green, and Blue (RGB)
  • Configuration: Independently configured
  • Manufacturer: Broadcom Limited
  • Cross-reference: Available with alternative parts
