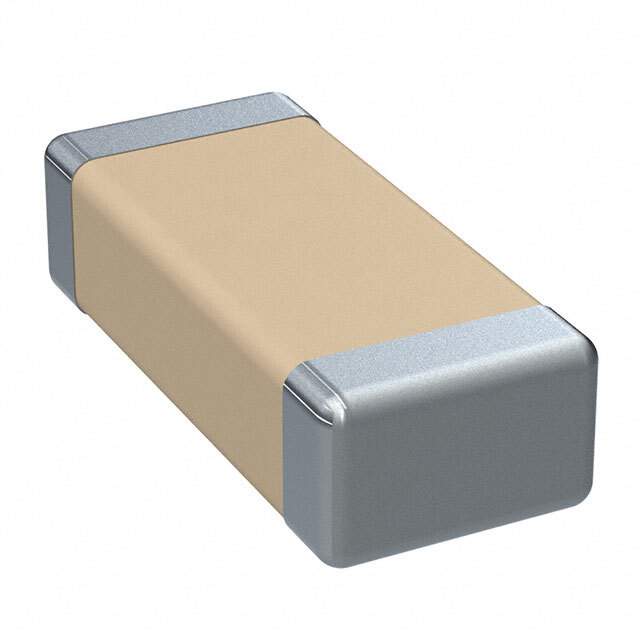

The C1206C103J2GACAUTO is a ceramic capacitor manufactured by Kemet. This component belongs to the automotive-grade multilayer ceramic capacitor (MLCC) family, making it suitable for applications requiring high reliability and performance in harsh automotive environments. This capacitor is specifically designed for use in automotive applications, ensuring robustness and long-term stability.

Applications:

• Automotive electronic control units (ECUs)
• Engine control systems
• Body control modules
• Infotainment systems
• Safety-critical applications (e.g., airbag systems, ABS)

Features:

• AEC-Q200 qualified for automotive applications
• SMD (Surface Mount Device) design
• Compact size (1206 package)
• Capacitance value of 10nF (10000 pF)
• Voltage rating of 200V
• C0G/NP0 dielectric material
• High stability and low loss

Benefits:

• Guaranteed reliability in demanding automotive conditions
• Stable capacitance over a wide temperature range
• Reduced board space due to compact size
• Excellent high-frequency performance
• Suitable for automated assembly processes

Additional Details:

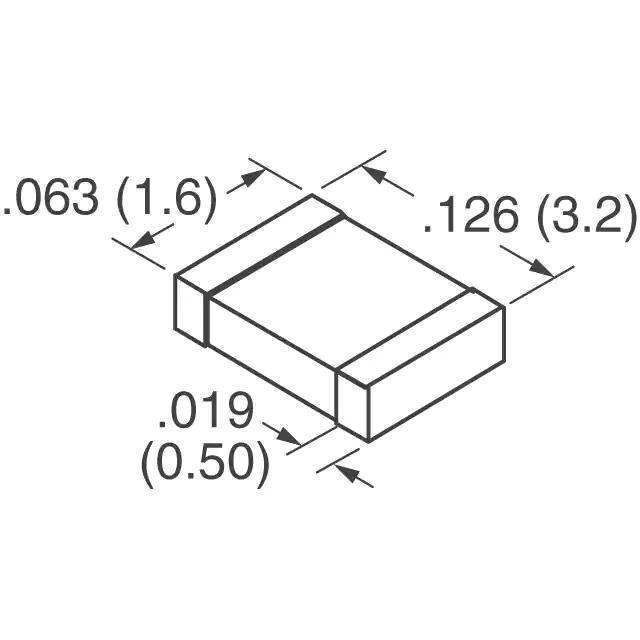

The C0G/NP0 dielectric ensures the capacitor maintains its capacitance with minimal variation over a broad temperature range (-55°C to +125°C). The 1206 package size refers to its dimensions: 0.12 inches in length and 0.06 inches in width. This capacitor is designed for reflow soldering processes commonly used in PCB assembly. The AEC-Q200 qualification ensures that it meets rigorous automotive industry standards for reliability and performance under stress. The termination is typically comprised of nickel barrier with tin plating for improved solderability. It is supplied in tape and reel packaging suitable for pick and place assembly.
