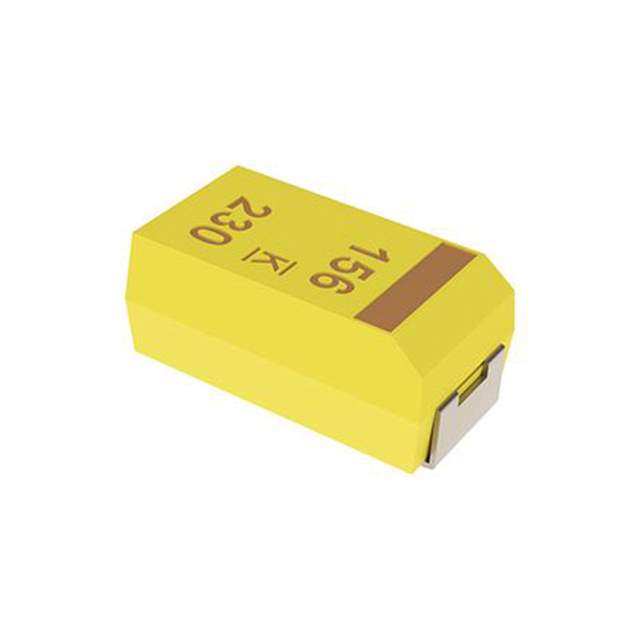

B45197A1477K509 Real Image
Same model may have multiple batches, images only for reference.

B45197A1477K509

Part No B45197A1477K509
Manufacturer Kemet
Catalog Custom Parts (B - D)
Description Cap Tant Solid 470uF 6.3V E CASE 10% (7.3 X 4.3 X 4.1mm) SMD 7343-44 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 470 µF
Case / Package E
Case Code (Imperial) 2917
Case Code (Metric) 7343
Depth 4.3 mm
Dissipation Factor 12 %
ESR (Equivalent Series Resistance) 100 mΩ
Height 4.4 mm
Lead Free Lead Free
Leakage Current 29.6 µA
Length 7.3 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Packaging Tape and Reel
Polarity Polar
RoHS Compliant
Termination SMD/SMT
Tolerance 10 %
Voltage Rating 6.3 V
Voltage Rating (DC) 6.3 V
Weight 670.01263 mg
Width 4.3 mm
Win Source Part Number 1182020-B45197A1477K509
Categories Custom Parts
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B45197A1477K509 CAD Model

Description

The Kemet B45197A1477K509 capacitor is a surface mount tantalum capacitor that has a capacitance of 470 µF and a voltage rating of 6.3V.

  • Capacitance: 470 µF
  • Voltage Rating: 6.3V
  • Tolerance: 10%
  • Dissipation Factor: 12%
  • Height: 4.4 mm
  • Length: 7.3 mm
  • Polarized: Yes
  • Leakage Current: 29.6 µA
  • Equivalent Series Resistance: 100 mΩ
  • Case/Package: E
  • RoHS Compliant: Yes
  • Temperature Range: -55 °C to 125 °C
