Same model may have multiple batches, images only for reference.

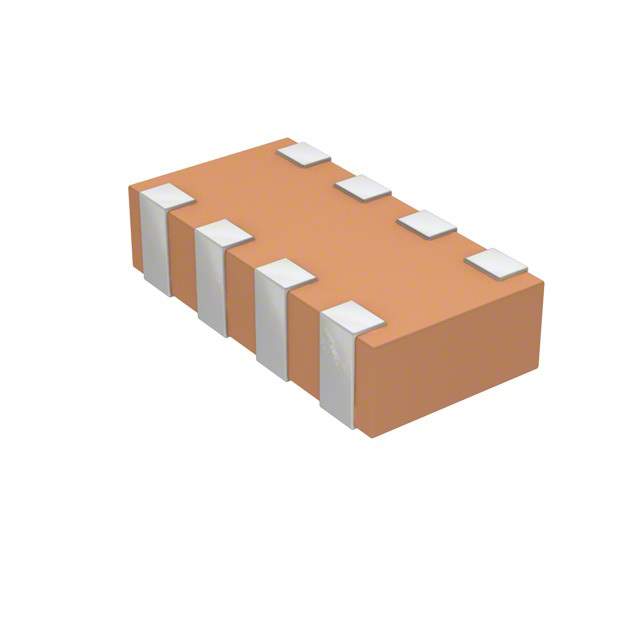

C1632C470K5GAC7800 Real Image
Same model may have multiple batches, images only for reference.

C1632C470K5GAC7800

Part No C1632C470K5GAC7800
Manufacturer Kemet
Catalog Custom Parts (B - D)
Description Cap Ceramic Array 47pF 50V C0G 10% 0612 SMD 4 Capacitor 125C Plastic T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 47 pF
Case / Package 0612
Composition Ceramic
Depth 1.6 mm
Dielectric C0G
Length 3.2 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Capacitors 4
Number of Terminals 8
Packaging Tape and Reel
Radiation Hardening No
RoHS Compliant
Terminal Pitch 800 µm
Tolerance 10 %
Win Source Part Number 1125124-C1632C470K5GAC7800
Categories Custom Parts
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C1632C470K5GAC7800 CAD Model

Description

The 1125124-C1632C470K5GAC7800 is a ceramic capacitor with a capacitance of 47 pF and a tolerance of 10% from Kemet.

  • Capacitance: 47 pF
  • Tolerance: 10%
  • Terminal Pitch: 800 µm
  • Mounting: surface mounting
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -55 °C
  • RoHS: compliant
  • Packaging: tape and reel
  • Length: 3.2 mm
  • Depth: 1.6 mm
  • Terminals: 8
  • Dielectric Material: C0G
