Same model may have multiple batches, images only for reference.

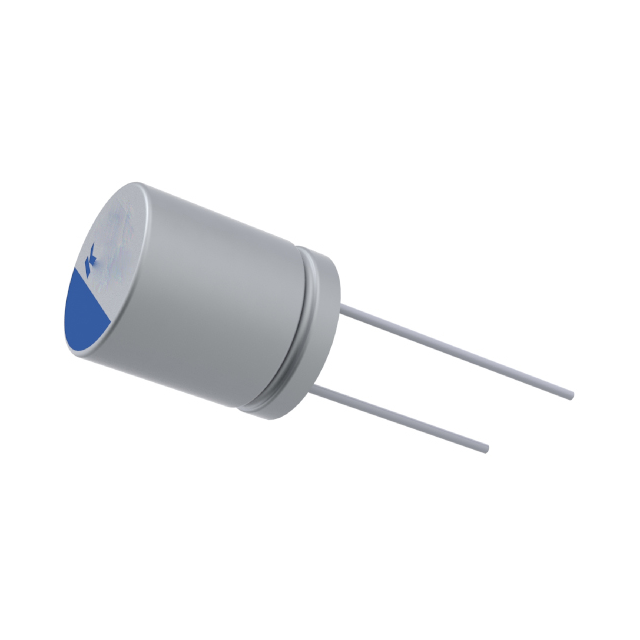

A759KC226M1JAAE054 Real Image
Same model may have multiple batches, images only for reference.

A759KC226M1JAAE054

Part No A759KC226M1JAAE054
Manufacturer Kemet
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 22UF 20% 63V T/H / 22 µF 63 V Aluminum - Polymer Capacitors Radial, Can 54mOhm 2000 Hrs @ 125°C
Datasheet
A759KC226M1JAAE054 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr KEMET
Series A759
Package Bulk
Type Polymer
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 54mOhm
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 99.9 mA @ 120 Hz
Ripple Current @ High Frequency 1.998 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number A759KC
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351243-A759KC226M1JAAE054
Ultra Librarian 3D Model Ultra Librarian A759KC226M1JAAE054 CAD Model

Description

The A759 series aluminum-polymer capacitor is a reliable component used in general purpose applications from KEMET.

  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • Size: 0.315" Dia (8.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • ESR: 54mOhm
  • Lifetime: 2000 hours @ 125°C
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
