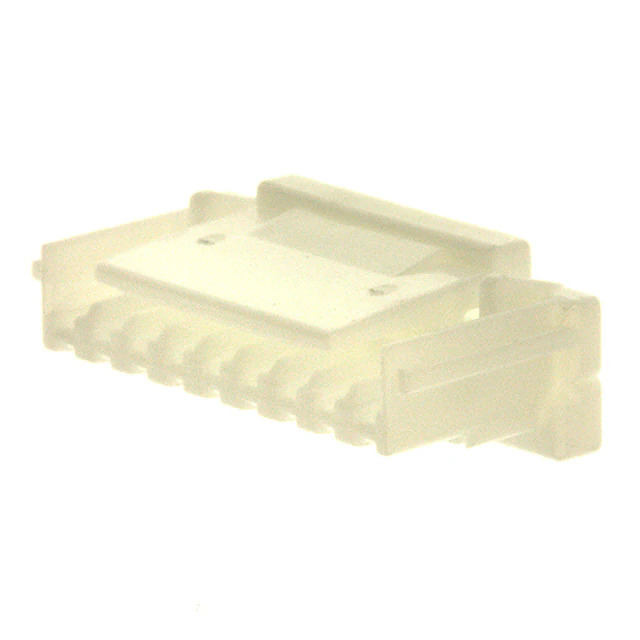

Same model may have multiple batches, images only for reference.

ZER-09V-S

Name: ZER-09V-S
Brand: JST Sales America Inc.
SKU: 1365338
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ZER-09V-S
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 9POS 1.50MM / 9 Rectangular Connectors - Housings Receptacle Natural 0.059" (1.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	JST Sales America Inc.
Series	ZE
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	9
Pitch	0.059" (1.50mm)
Number of Rows	1
Row Spacing	-
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	Natural
Features	-
Temperature Range - Operating	-25°C ~ 85°C
Note	Contacts Not Included
Base Product Number	ZER
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8538.90.6000
Win Source Part Number	1365338-ZER-09V-S
Ultra Librarian 3D Model	Ultra Librarian ZER-09V-S CAD Model

Alternative Products

Description

The 1365338-ZER-09V-S is a rectangular connector housing from JST Sales America Inc.'s ZE series.

Mounting Type: Free-Hanging (In-Line)
Pitch: 0.059" (1.50mm)
Positions: 9
Rows: 1
Contact Type: Female Socket
Fastening: Latch Holder
Color: Natural
Contacts Included: No
Operating Temperature: -25°C to 85°C
Packaging: Bulk
