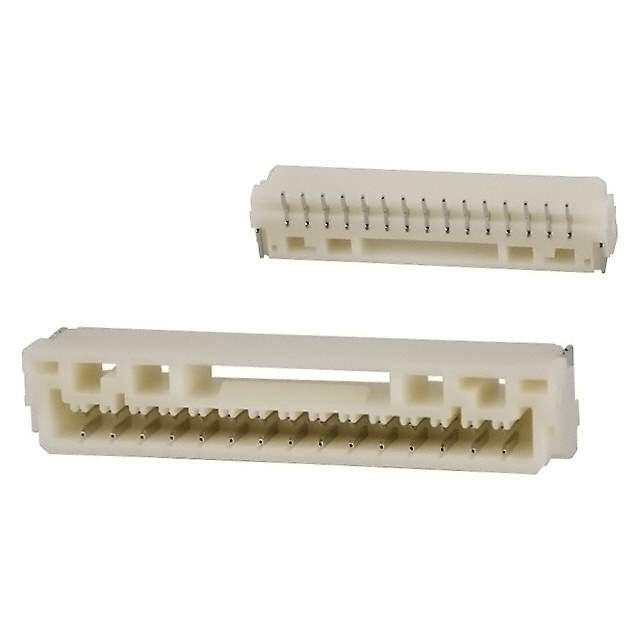

The BM15B-GHS-TBT(LF)(SN)(N) is a 15-position, 1.25mm pitch, crimp-style connector manufactured by JST Sales America Inc. It belongs to the GHS series, known for its compact design and reliable wire-to-board connections, especially suited for high-density applications.

Applications:

• Signal and power connections in compact electronic devices
• Wire-to-board connections in space-constrained industrial equipment
• Internal wiring in consumer electronics, such as smartphones and tablets
• Data transmission in portable devices
• Automotive electronics where space is a premium

Features:

• Number of Positions: 15
• Pitch: 1.25mm
• Crimp Style Termination
• Wire-to-Board Connector
• GHS Series
• Compact and low-profile design
• Lead-free (LF) and Tin (Sn) plating

Benefits:

• Secure and reliable wire-to-board connection in tight spaces
• High-density connection due to the fine 1.25mm pitch
• Efficient and easy crimp termination process
• Lead-free and RoHS compliant, making it environmentally friendly
• Durable construction for long-term performance in demanding environments

Additional Details:

The BM15B-GHS-TBT(LF)(SN)(N) connector is designed for use with specific wire gauges, often in the range of 26-32 AWG. The crimp-style termination ensures a strong and gas-tight connection, preventing corrosion and ensuring long-term reliability. The 'LF' in the part number indicates that the connector is lead-free, complying with RoHS environmental regulations. The '(SN)' indicates a tin plating which provides good solderability and corrosion resistance. The 'TBT' likely denotes tape and box packaging for automated assembly. Mating headers and compatible crimp terminals are available separately. It is crucial to consult the datasheet for the specific wire gauge compatibility, crimping tool recommendations, and mating connector information.
