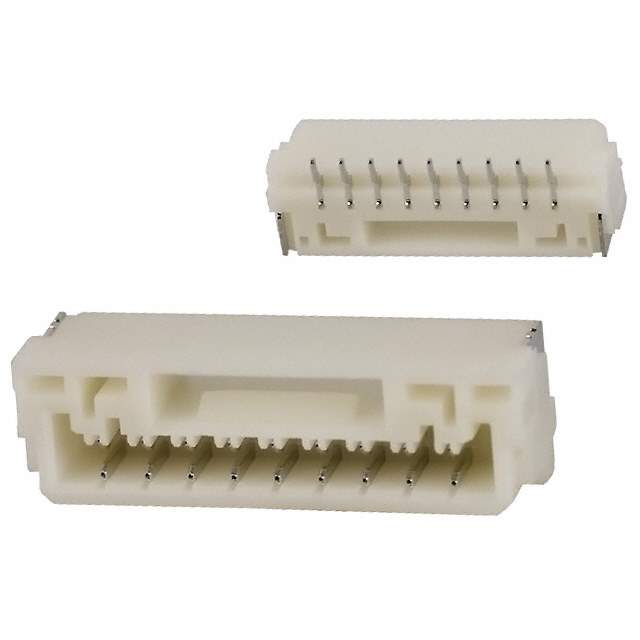

BM09B-GHS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

BM09B-GHS-TBT(LF)(SN)

Part No BM09B-GHS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog OEM Parts (A - B)
Description Conn Shrouded Header HDR 9 POS 1.25mm Solder ST Top Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Tin
Current Rating 1 A
Height 4.05 mm
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Length 14.5 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Contacts 9
Number of Positions 9
Number of Rows 1
Packaging Cut Tape
Pitch 1.25 mm
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating (AC) 50 V
Width 4.25 mm
Wire/Cable Gauge 26 AWG
Win Source Part Number 1010766-BM09B-GHS-TBT(LF)(SN)
Categories OEM Parts(A-B)
Manufacturer JST Sales America Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian BM09B-GHS-TBT(LF)(SN) CAD Model

Description

The 1010766-BM09B-GHS-TBT(LF)(SN) is a 9 position male pin header connector manufactured by JST Sales America Inc.

  • Positions: 9
  • Pitch: 1.25mm
  • Termination: SMD/SMT
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Current Rating: 1A
  • Voltage Rating: 50V
  • Mounting Style: Surface Mount
  • Housing Color: Natural
  • Temperature Range: -25°C to 85°C
  • RoHS Compliant: Yes
