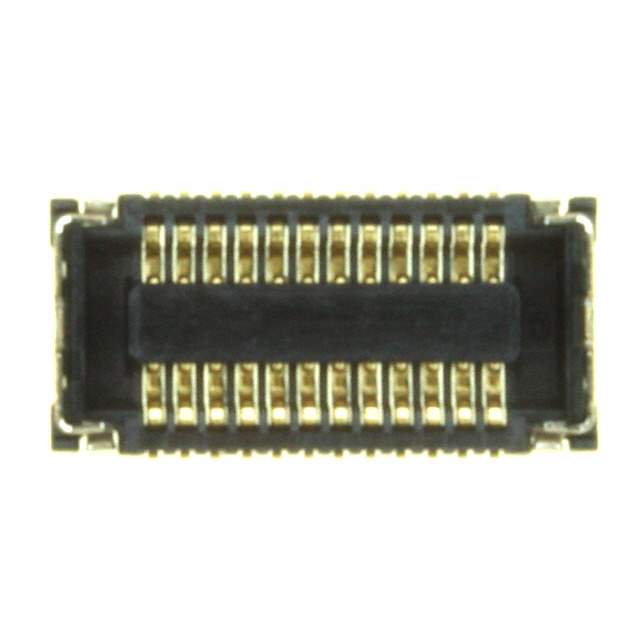

WP3-S024VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP3-S024VA1-R6000

Part No WP3-S024VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 0.4MM 24POS DUAL SMD
Datasheet
WP3-S024VA1-R6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Reel - TR
Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 1mm
Height Above Board 0.039" (1.00mm)
Win Source Part Number 1118012-WP3-S024VA1-R6000
Popularity Medium
Supply and Demand Status Balance
Quantity per package 6k pcs
Ultra Librarian 3D Model Ultra Librarian WP3-S024VA1-R6000 CAD Model

Description

The JAE Electronics 1118012-WP3-S024VA1-R6000 is a 24-position connector receptacle that features center strip contacts, surface mount gold plating, and is packaged on a reel-TR.

  • Positions: 24
  • Features: center strip contacts, surface mount gold plating
  • Packaging: reel-TR
  • Pitch: 0.016" (0.40mm)
  • Features: solder retention features
  • Rows: 2
  • Mated Stacking Height: 1mm
  • Height Above Board: 0.039" (1.00mm)
  • Mounting Type: SMD (SMT)
  • Supply and Demand Status: balanced
  • Pieces Per Package: 6k pieces
