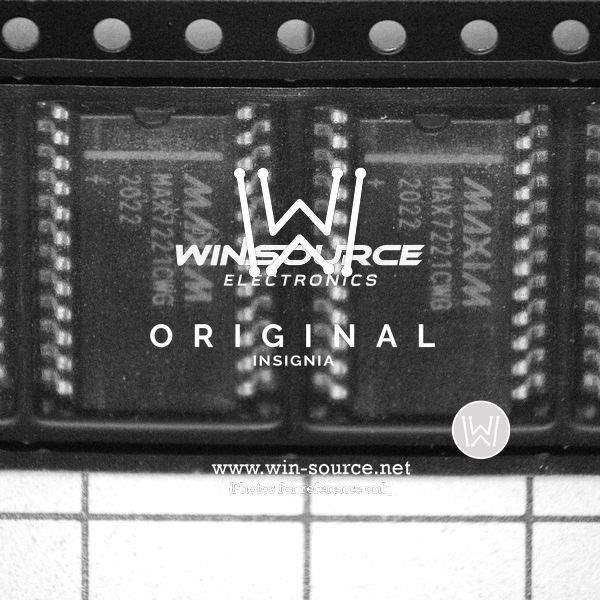

Maxim Integrated MAX7221CWG Overview

The MAX7221CWG from Maxim Integrated is a compact, serial input/output common-cathode display driver that is designed to interface microprocessors to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. This integrated circuit is included in the category of power management ICs, specifically in the LED display drivers' segment.

Key Features

• Integrated Multiplexing: The MAX7221CWG incorporates multiplexing circuitry for driving the displays, thereby reducing the need for external components and simplifying the design process.
• Serial Interface: It features a convenient serial interface that connects to all common microprocessors and allows the selection of data without the need for BCD conversion, making it highly efficient for modern digital applications.
• Digital Intensity Control: An onboard digital brightness control allows the user to set the intensity of the display from 1/16th to full brightness, providing flexibility for different lighting conditions.
• Individual LED Segment Control: Users can control each LED segment individually, offering the capability to create custom characters or graphics beyond standard numeric output.
• Low Power Consumption: Designed with power-saving in mind, the MAX7221CWG operates with a low power shutdown mode, which significantly reduces power consumption when the display is not in use.
• Daisy-Chain Capability: Multiple MAX7221CWG devices can be cascaded, enabling the control of an extended number of displays or LEDs with a minimal number of interface pins.
• Package: The device is available in a 24-pin WSOIC (Wide Small Outline Integrated Circuit) package, which is suitable for surface-mount technology (SMT) and occupies minimal board space.

Applications

The MAX7221CWG is versatile and can be used in a wide range of applications. It is particularly well-suited for panel meters, digital clocks, vending machines, instrument clusters, and other display-related projects where reliability and ease of interfacing are critical.

With its robust design and Maxim Integrated's reputation for quality, the MAX7221CWG is a reliable choice for developers looking to create efficient and visually appealing LED displays in their electronic projects.
