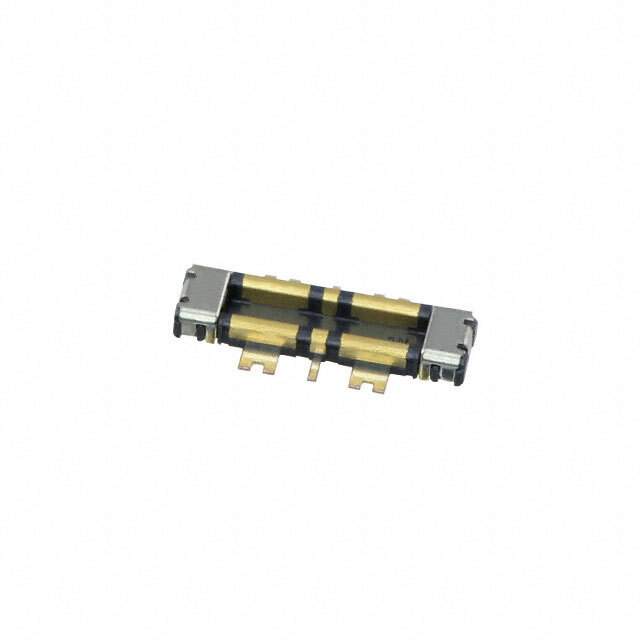

WP10-P004VA10-R15000 Real Image
Same model may have multiple batches, images only for reference.

WP10-P004VA10-R15000

Part No WP10-P004VA10-R15000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 4POS SMD GOLD / 8 (4 + 4 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP10
Package Tape & Reel
Connector Type Plug, Outer Shroud Contacts
Number of Positions 8 (4 + 4 Power)
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.7mm
Height Above Board 0.023" (0.59mm)
Base Product Number WP10-P00
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-2961-2,670-2961-1,670-2961-6
Standard Package 15,000
Win Source Part Number 1116032-WP10-P004VA10-R15000
Ultra Librarian 3D Model Ultra Librarian WP10-P004VA10-R15000 CAD Model

Description

The WP10-P004VA10-R15000 from JAE Electronics is a high-quality rectangular connector that is designed for use in edge-type mezzanine applications.

  • Series: WP10
  • Win Source part number: 1116032-WP10-P004VA10-R15000
  • Positions: Eight
  • Power Positions: Four per side
  • Pitch: 0.016 inches
  • Features: Solder Retention
  • Connector Type: Plug
  • Contacts: Outer Shroud
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Mated Stacking Height: 0.7mm
  • Height Above Board: 0.023 inches
