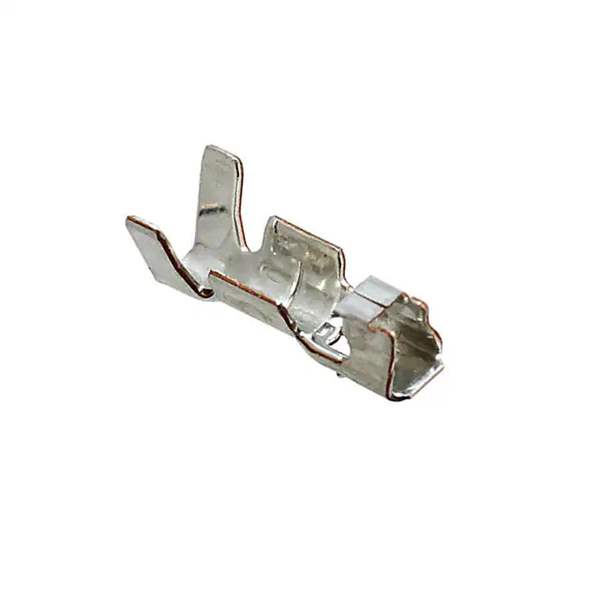

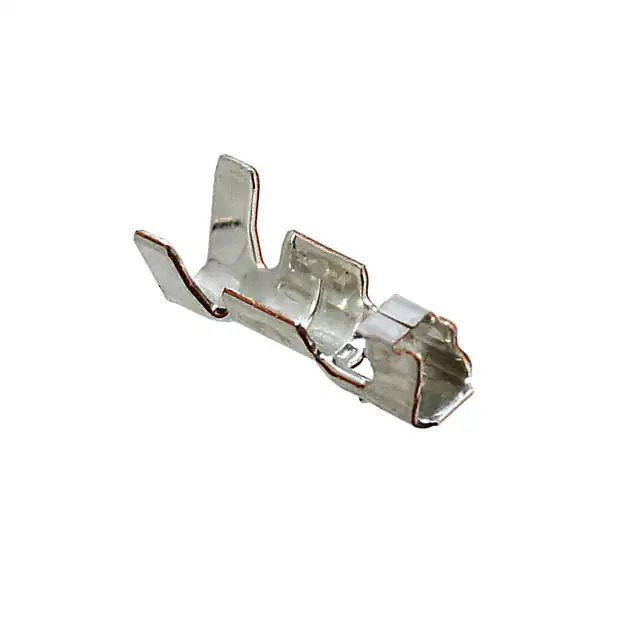

IL-C2-10000 JAE Electronics
Same model may have multiple batches, images only for reference.

IL-C2-10000

Part No IL-C2-10000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN SOCKET 22-28AWG CRIMP TIN / Socket Contact Tin 22-28 AWG Crimp Stamped
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr JAE Electronics
Series IL
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-28 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number IL-C2-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364764-IL-C2-10000
Ultra Librarian 3D Model Ultra Librarian IL-C2-10000 CAD Model

Description

The IL-C2-10000 is a rectangular connector contact manufactured by JAE Electronics.

  • Contact Type: Socket
  • Termination: Crimp
  • Series: IL
  • Base Product Number: IL-C2-1
  • Wire Gauge: 22 to 28 AWG
  • Contact Finish: Tin
  • Product Status: Active
  • MSL Level: 1
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
