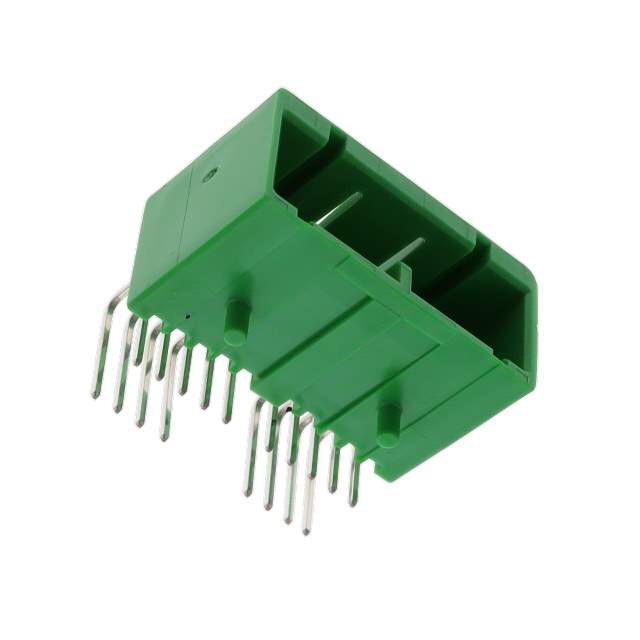

IL-AG5-18P-D3L2 Real Image
Same model may have multiple batches, images only for reference.

IL-AG5-18P-D3L2

Part No IL-AG5-18P-D3L2
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 18POS 2.5MM
Datasheet
IL-AG5-18P-D3L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 18 position 0.098" (2.50mm)
Manufacturer JAE Electronics
Series IL-AG5
Package Bulk
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole, Right Angle
Family Name IL-AG5-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 670-3000, IL-AG5-18P-D3L2-ND
Quantity per package 672
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 874513-IL-AG5-18P-D3L2
Ultra Librarian 3D Model Ultra Librarian IL-AG5-18P-D3L2 CAD Model

Description

The IL-AG5-18P-D3L2 is a 18 position 0.098" (2.50mm) connector header from JAE Electronics.

  • Number of Positions: 18
  • Pitch: 0.098" (2.50mm)
  • Mounting Type: Through Hole, Right Angle
  • Package: Bulk
  • Family Name: IL-AG5-1
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 672
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 13 weeks
  • HTSUS: 8536.69.4040
