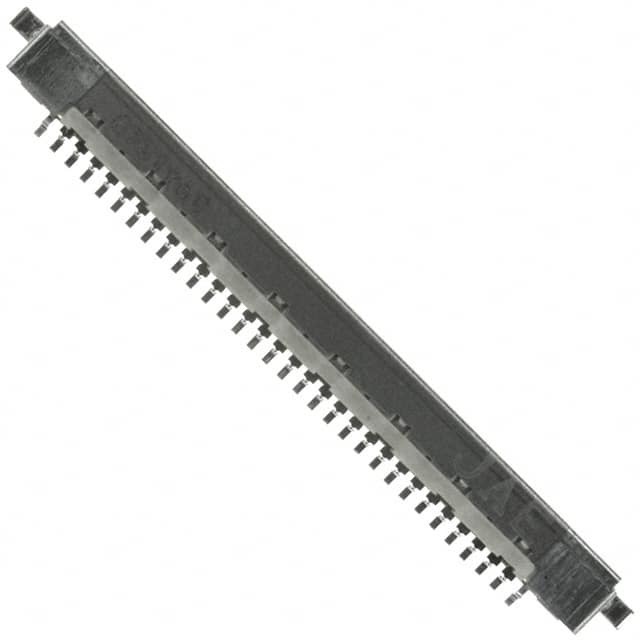

FI-X30SSL-HF-R2500
Same model may have multiple batches, images only for reference.

FI-X30SSL-HF-R2500

Part No FI-X30SSL-HF-R2500
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 30P 0.039 GOLD SMD R/A / 30 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
Datasheet
FI-X30SSL-HF-R2500 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr JAE Electronics
Series FI-X
Package Tape & Reel
Product Status Obsolete
Connector Type Receptacle
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.039" (1.00mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Insulation Color Beige
Insulation Height 0.091" (2.30mm)
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Grounding Pins, Shielded, Solder Retention
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Applications General Purpose
Insulation Material Plastic
Contact Material Copper Alloy
Base Product Number FI-X30
Standard Package 2,500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849361-FI-X30SSL-HF-R2500
Ultra Librarian 3D Model Ultra Librarian FI-X30SSL-HF-R2500 CAD Model

Description

The FI-X30SSL-HF-R2500 is a rectangular connector header from JAE Electronics.

  • Series: FI-X
  • Positions: 30
  • Pitch: 0.039" (1.00mm)
  • Connector Type: receptacle
  • Contact Gender: non-gendered
  • Mounting: surface mount, right angle
  • Fastening Type: friction lock
  • Contact Material: copper alloy
  • Contact Finish: gold
  • Voltage Rating: 200V
  • Application: general-purpose
  • Packaging: tape & reel
  • Standard Package: 2,500 pcs
  • REACH: unaffected
  • ECCN: EAR99
