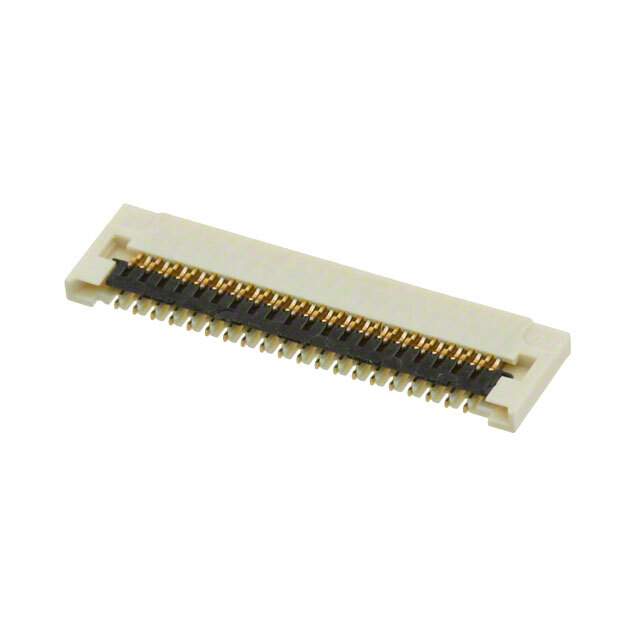

FF02S40SV1-R3000

Name: FF02S40SV1-R3000
Brand: JAE Electronics
SKU: 803650
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FF02S40SV1-R3000
Manufacturer	JAE Electronics
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 40POS 0.30MM R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JAE Electronics
Packaging	Reel
Part Status	Obsolete (End Of Life)
Flat Flex Type	FPC
Mounting Style	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	40
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.12mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock
Cable End Type	Straight
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.35A per Contact
Contact Finish Thickness	3.94μin (0.10μm)
Housing Color	White
Actuator Color	Black
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803650-FF02S40SV1-R3000
Ultra Librarian 3D Model	Ultra Librarian FF02S40SV1-R3000 CAD Model

Description

The JAE Electronics connector is a 40-position FPC connector with zero insertion force (ZIF) feature.

Voltage Rating: 50V
Current Rating: 0.35A per contact
Contact Material: Copper Alloy
Material Flammability Rating: UL94 V-0
Mounting Type: Surface Mount
Fastening Type: Right Angle
Housing Material: Liquid Crystal Polymer (LCP)
Actuator Material: Polyphenylene Sulfide (PPS)
Housing Color: White
Actuator Color: Black
Obsolete: Yes
EOL Date: 2031 (Estimated)
