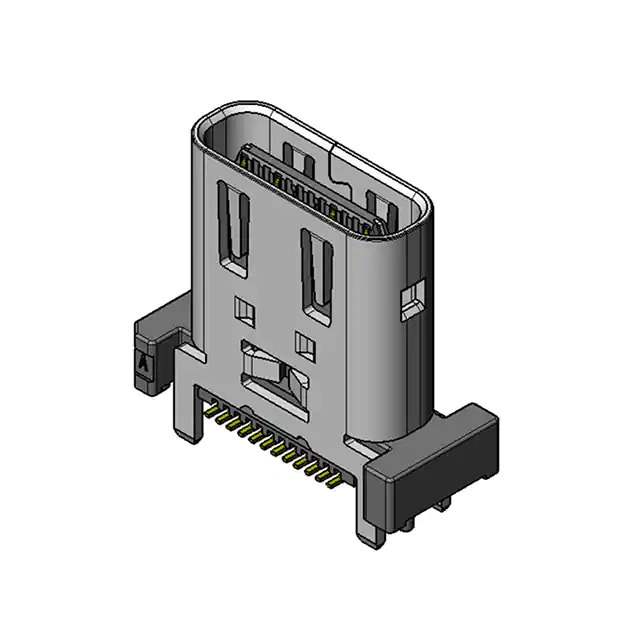

DX07S024WJ3R400

Name: DX07S024WJ3R400
Brand: JAE Electronics
SKU: 845177
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DX07S024WJ3R400
Manufacturer	JAE Electronics
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB3.1 TYPEC 24POS SMD
Datasheet	DX07S024WJ3R400 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	JAE Electronics
Series	DX07
Package	Tape & Reel
Product Status	Active
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Receptacle
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type	Surface Mount, Through Hole
Mounting Feature	Vertical
Termination	Solder
Features	Board Guide
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	5A
Voltage - Rated	20V
Mating Cycles	10000
Shielding	Unshielded
Insulation Color	Black
Base Product Number	DX07S024
Standard Package	400 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	845177-DX07S024WJ3R400
Ultra Librarian 3D Model	Ultra Librarian DX07S024WJ3R400 CAD Model

Description

The DX07S024WJ3R400 is a USB-C connector assembly from the DX07 series by JAE Electronics.

Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +)
Connector Type: Receptacle
Number of Contacts: 24
Shielded: No
Rated Voltage: 20V
Current Rating: 5A
Mounting Orientation: Vertical
Mating Cycle: 10,000
Operating Temperature: -30°C to 80°C
Product Status: Active
