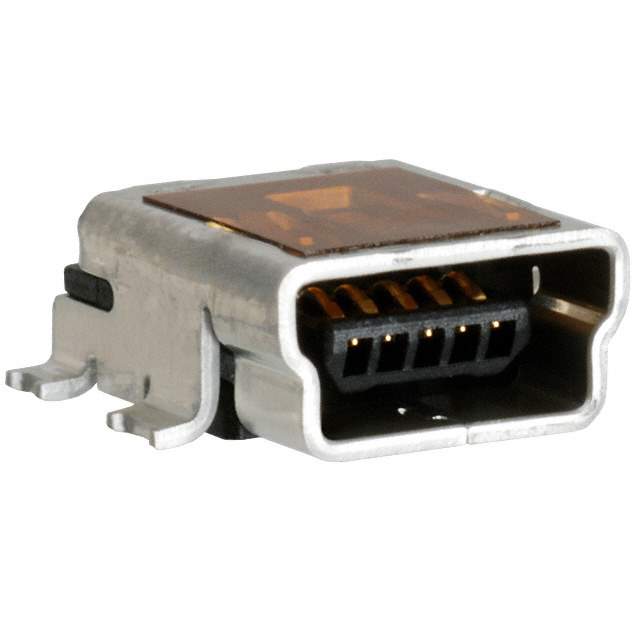

54819-0572 Real Image
Same model may have multiple batches, images only for reference.

54819-0572

Part No 54819-0572
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Conn zQSFP+ RCP 38 POS 0.8mm Solder RA SMD 38 Terminal 1 Port T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black, Grey
Connector Type Receptacle, USB
Contact Material Copper
Contact Plating Gold
Contact Resistance 50 mΩ
Country of Origin US
Current Rating 1 A
Data Rate 480 Mbps
Depth 9 mm
Flammability Rating UL94 V-0
Gender Female
Height 4.15 mm
Housing Color Black
Housing Material Polyphthalamide
Insulation Resistance 100 MΩ
Lead Free Yes
Lead Pitch 800 µm
Length 9.9 mm
Max Current Rating 1 A
Maximum Operating Temperature 50 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Pins 5
Number of Ports 1
Number of Positions 5
Number of Terminals 5
Orientation Right Angle
Packaging Cut Tape
Pitch 800 µm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050, 8536695050
Termination Solder
USB Standard USB 2.0
Voltage Rating 30 V
Voltage Rating (DC) 30 V
Width 6.9 mm
Working Voltage 30 V
Win Source Part Number 1039219-54819-0572
Categories USB,DVI,HDMI Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54819-0572 CAD Model

Description

This Molex USB Receptacle Connector is a high-quality, 5-position connector that is designed to provide a reliable and secure connection for USB cables.

  • Positions: 5
  • Pitch: 800 µm
  • Voltage Rating: 30 V
  • Orientation: Right-angle
  • Contact Plating: Gold
  • Housing: Polyphthalamide
  • Data Rate: 480 Mbps
  • Current Rating: 1 A
  • Packaging: Cut tape
  • Application: Surface mount
