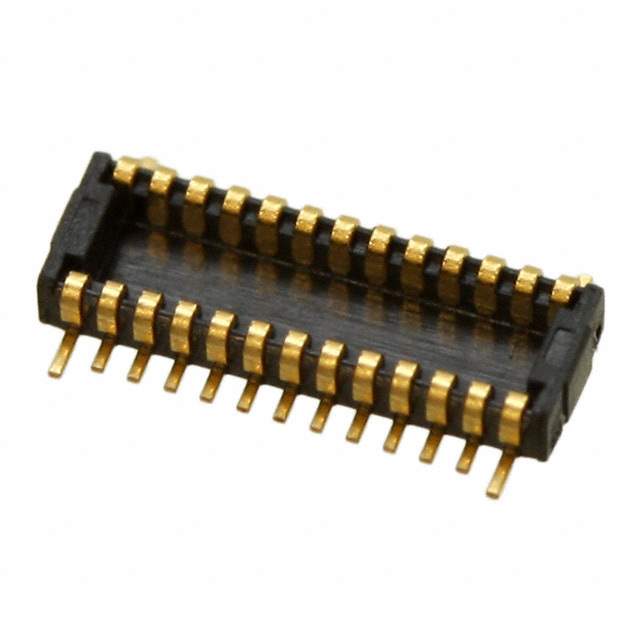

AA03P022VA2R6000 Real Image
Same model may have multiple batches, images only for reference.

AA03P022VA2R6000

Part No AA03P022VA2R6000
Manufacturer JAE Electronics
Catalog Custom Parts (0 - A)
Description Conn Plug 0.4MM 22POS Dual SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Housing Color Black
Housing Material Plastic
Lead Free Lead Free
Lead Pitch 400 µm
Mount Vertical
Number of Contacts 20
Number of Positions 22
Number of Rows 2
Packaging Cut Tape
RoHS Compliant
Win Source Part Number 1112756-AA03P022VA2R6000
Categories Custom Parts
Manufacturer JAE Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AA03P022VA2R6000 CAD Model

Description

The JAE Electronics 1112756-AA03P022VA2R6000 is a 2-row, 22-position connector with a gold contact plating and black housing color.

  • Rows: 2
  • Positions: 22
  • Contact Plating: Gold
  • Housing Color: Black
  • Packaging: Cut tape
  • RoHS: Lead-free
  • Housing Material: Plastic
  • Contact Pitch: 400 µm
  • Type: Custom part
  • Alternative Part: AA03-P022VA2-R6000
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Mounting Orientation: Vertical
