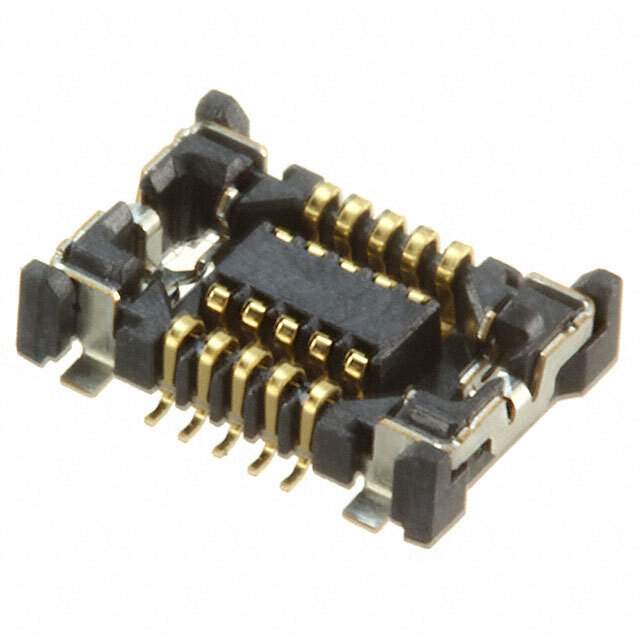

AA01A-S010VAT-0001

Get a Quote

Part No	AA01A-S010VAT-0001
Manufacturer	JAE Electronics
Catalog	Rectangular Connectors
Description	CONN RCPT 0.5MM 10POS SMD DUAL
Datasheet	AA01A-S010VAT-0001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	JAE Electronics
Series	AA01A
Part Status	Obsolete(EOL)
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	10
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD
Features	Solder Retention
Contact Finish	Gold
Contact Finish Thickness	3.9μin (0.10μm)
Mated Stacking Heights	1.5mm
Height Above Board	0.058" (1.48mm)
Win Source Part Number	768885-AA01A-S010VAT-0001
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	1
Ultra Librarian 3D Model	Ultra Librarian AA01A-S010VAT-0001 CAD Model

Description

The JAE Electronics AA01A series connector is a 10-position receptacle with center strip contacts.

Positions: 10
Contact Type: Receptacle
Contact Style: Center Strip
Pitch: 0.020" (0.50mm)
Contact Style: Solder Retention
Contact Finish: gold
Contact Finish Thickness: 3.9μin (0.10μm)
Height Above Board: 0.058" (1.48mm)
Mated Stacking Heights: 1.5mm
Mounting Type: surface mount
Category: Connectors, Interconnects
Obsolete (EOL): Yes
Popularity: medium
Supply and Demand Status: limited
