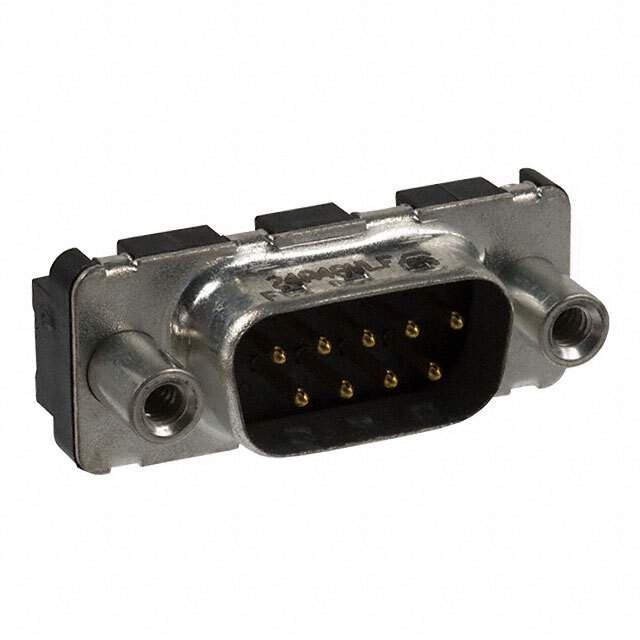

Same model may have multiple batches, images only for reference.

D09P24A4GV00LF

Name: D09P24A4GV00LF
Brand: Amphenol
SKU: 1194719
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	D09P24A4GV00LF
Manufacturer	Amphenol
Catalog	D - Sub Connectors
Description	CONN D-SUB PLUG 9POS VERT SLDR / 9 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>D-Sub Connectors
Mfr	Amphenol ICC (FCI)
Series	Delta D
Package	Tray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Mounting Type	Through Hole
Shell Size, Connector Layout	1 (DE, E)
Contact Type	Signal
Flange Feature	Mating Side, Female Screwlock (4-40)
Termination	Solder
Shell Material, Finish	Steel, Tin-Nickel Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	5A per Contact
Features	Board Lock, Grounding Indents
Voltage Rating	300V
Color	Black
Dielectric Material	Polybutylene Terephthalate (PBT)
Contact Material	Phosphor Bronze
Temperature Range - Operating	-55°C ~ 125°C
Base Product Number	D09P24
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-1479,Q7201480
Standard Package	30
Win Source Part Number	1194719-D09P24A4GV00LF
Ultra Librarian 3D Model	Ultra Librarian D09P24A4GV00LF CAD Model

Alternative Products

Description

The Delta D D09P24A4GV00LF is a D-sub connector that features board lock, grounding indents, and a plug with male pins.

Features: Board Lock, Grounding Indents
Product: Plug with Male Pins
Positions: 9
Rows: 2
Voltage Rating: 300V
Contact Finish: Gold (Flash)
Contact Material: Phosphor Bronze
Shell Material: Steel (Tin-Nickel Plating)
Dielectric Material: Polybutylene Terephthalate (PBT)
Mounting: Through-Hole
Temperature Range: -55°C to 125°C
