Same model may have multiple batches, images only for reference.

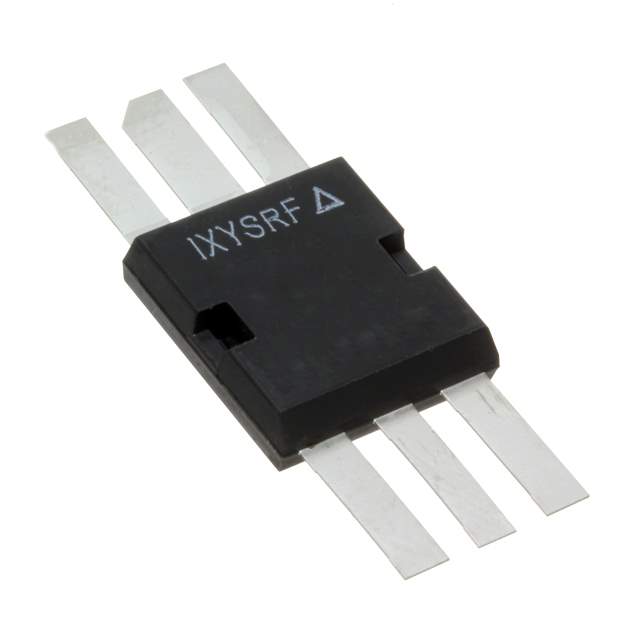

SS275TI12205 Real Image
Same model may have multiple batches, images only for reference.

SS275TI12205

Part No SS275TI12205
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Datasheet
SS275TI12205 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS-RF
Package Tube
Product Status Obsolete
Diode Configuration 3 Independent
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package DE275
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1283026-SS275TI12205
Ultra Librarian 3D Model Ultra Librarian SS275TI12205 CAD Model

Description

The SS275TI12205 is a product of IXYS-RF.

  • Package: Tube
  • Mounting Type: SMD (SMT)
  • Diode Configuration: 3 independent
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 1200 V
  • Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 5 A
  • Reverse Recovery Time (trr): 0 ns
  • Current - Reverse Leakage @ Vr: 200 µA @ 1200 V
  • Operating Temperature - Junction: -55°C to 175°C
