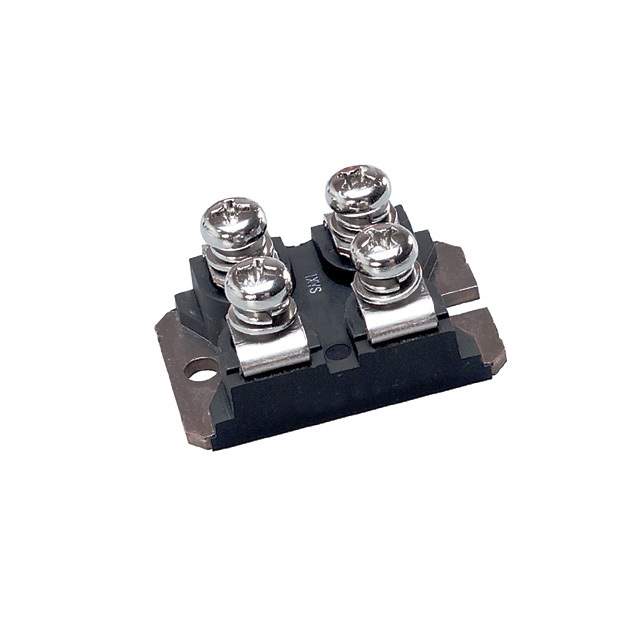

MCD40-16IO6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1600V
Current - On State (It (AV)) (Maximum) 38A
Current - On State (It (RMS)) (Maximum) 60A
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 500A, 440A
Current - Hold (Ih) (Maximum) 200mA
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Win Source Part Number 1220595-MCD40-16IO6
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name MCD40-16io6
Introduction Date October 25, 2000
Country of Origin Germany
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MCD40-16IO6 CAD Model

Description

The IXYS MCD40-16IO6 is a series connection SCR/Diode structure product.

  • SCR/Diode: It has 1 SCR and 1 diode
  • Voltage: 1600V
  • Temperature Range: -40°C to 150°C (TJ)
  • Packaging: Tube packaging
  • Mounting: Chassis mount
  • Category: Discrete semiconductor products
  • Family Name: MCD40-16io6
  • Manufacturer: IXYS
  • Manufacturer Homepage: www.ixys.com
  • Current - On State (It (RMS)) (Maximum): 60A
  • Voltage - Gate Trigger (Vgt) (Maximum): 1.5V
  • Current - Gate Trigger (Igt) (Maximum): 100mA
  • Current - Hold (Ih) (Maximum): 200mA
  • Current - On State (It (AV)) (Maximum): 38A
  • Alternative Parts (Cross-Reference): SKCH 40/16
  • Introduction Date: October 25, 2000
  • Country of Origin: Germany
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2023
