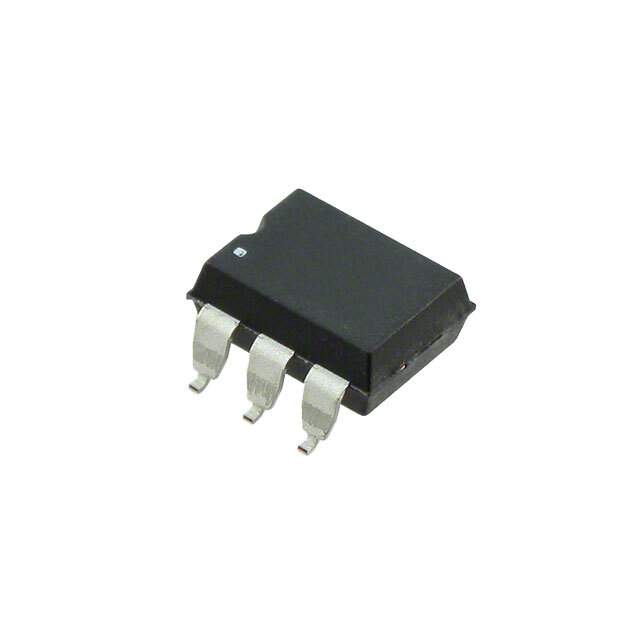

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 20 Ohm
Load Current 170mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 120068-LCA125LSTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LCA125LSTR CAD Model

Description

The LCA125LSTR is a relay from IXYS, designed for use in a range of applications. With a load current of 170mA and a voltage-load of 0 to 350V, this relay is ideal for a range of applications.

  • Load Current: 170mA
  • Voltage-Load: 0 to 350V
  • Termination Style: Gull-wing termination style
  • Mounting Type: SMD (SMT) mounting type
  • Voltage-Input: 1.2VDC
  • Circuit: SPST-NO (1 Form A) circuit relay
  • Max on Resistance: 20 Ohm
  • Case/Package: 6-SMD
