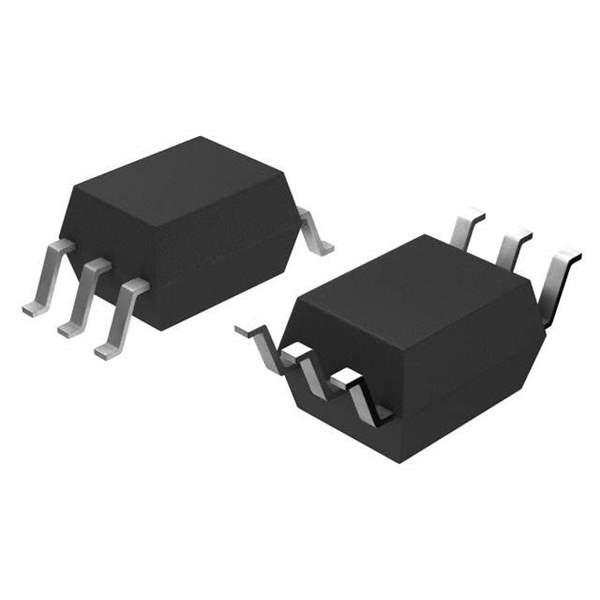

The TLP197D is a solid-state relay (SSR) manufactured by Toshiba Semiconductor and Storage. It is designed to switch AC or DC loads using an optocoupler to provide electrical isolation between the control circuit and the load circuit. This isolation is crucial for safety and preventing noise from affecting sensitive control electronics. SSRs offer advantages over traditional electromechanical relays, including faster switching speeds, longer lifespan, and silent operation.

Applications:

• Industrial automation: Programmable logic controllers (PLCs), motor control, and process control systems.
• Lighting control: Stage lighting, architectural lighting, and dimming systems.
• Heating, ventilation, and air conditioning (HVAC): Temperature control, fan control, and valve control.
• Medical equipment: Patient monitoring systems, diagnostic equipment, and therapeutic devices.
• Security systems: Alarm systems, access control systems, and surveillance systems.

Features:

• Opto-isolation: Provides electrical isolation between the control circuit and the load circuit.
• AC/DC switching: Can switch both AC and DC loads.
• Low on-resistance: Minimizes power dissipation and heat generation.
• High surge current capability: Withstands high inrush currents during load switching.
• Zero-crossing detection: Reduces electromagnetic interference (EMI) during AC switching.
• Small form factor: Allows for easy integration into compact designs.

Benefits:

• Enhanced safety: Provides electrical isolation between the control circuit and the load circuit, protecting operators and equipment.
• Long lifespan: Eliminates mechanical wear and tear, resulting in a longer lifespan compared to electromechanical relays.
• Fast switching speeds: Enables rapid switching of loads, improving system responsiveness.
• Silent operation: Operates silently, making it suitable for noise-sensitive environments.
• Reduced EMI: Zero-crossing detection minimizes electromagnetic interference during AC switching.

Technical Specifications:

The TLP197D typically features an input voltage range of 3V to 5V and can switch AC or DC loads up to several amperes. The on-resistance is typically low, reducing power dissipation. The isolation voltage is typically several kilovolts, providing robust electrical isolation. The device incorporates a zero-crossing detection circuit to minimize EMI during AC switching. It is available in a small form factor package, such as a DIP or SOP. The datasheet contains detailed information on the device's electrical characteristics, switching specifications, and package dimensions.

The TLP197D provides a reliable and efficient solution for switching AC or DC loads in a wide range of applications, offering electrical isolation and long lifespan.
