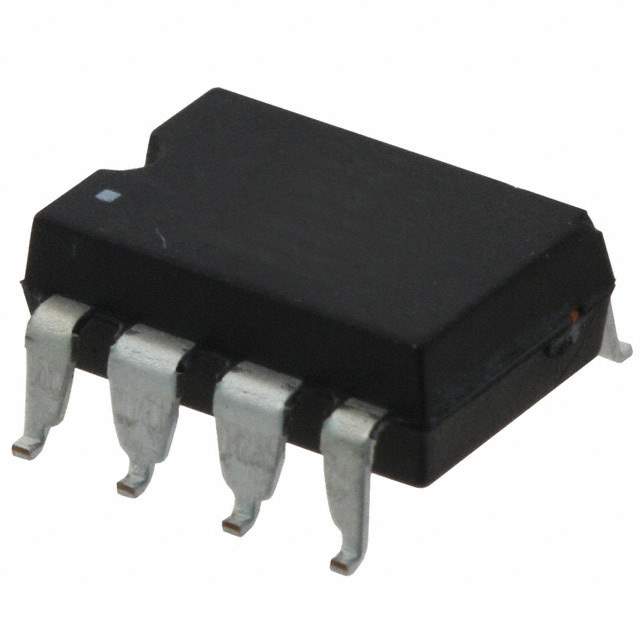

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer IXYS
Packaging Reel - TR
Status Active
Circuit DPST (2 Form B)
Output Type AC, DC
Max On Resistance 35 Ohm
Load Current 120mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 350 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-Flatpack
Relay Type Relay
Win Source Part Number 002317-LBB110PTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LBB110PTR CAD Model

Description

The IXYS 002317-LBB110PTR is a high-quality relay designed for use in a variety of applications.

  • Voltage input: 1.2VDC
  • Load current: 120mA
  • Circuit: DPST (2 Form B)
  • Output type: AC/DC
