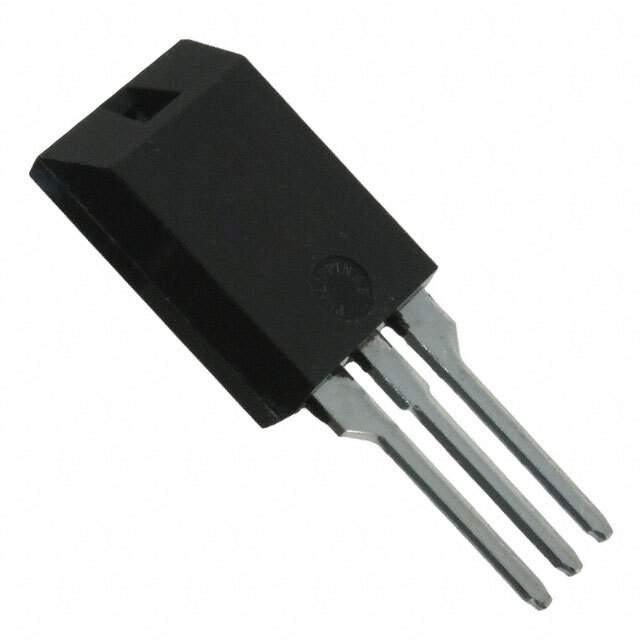

IXTC75N10 Real Image
Same model may have multiple batches, images only for reference.

IXTC75N10

Part No IXTC75N10
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 100V 72A ISOPLUS220 / N-Channel 100 V 72A (Tc) 230W (Tc) Through Hole ISOPLUS220™
Datasheet
IXTC75N10 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr IXYS
Series MegaMOS™
Package Tube
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 72A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 20mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 260 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4500 pF @ 25 V
Power Dissipation (Max) 230W (Tc)
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package ISOPLUS220™
Package / Case ISOPLUS220™
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 50
Win Source Part Number 1179102-IXTC75N10
Ultra Librarian 3D Model Ultra Librarian IXTC75N10 CAD Model

Description

The IXTC75N10 is an N-channel MegaMOS™ MOSFET with a drain to source voltage of 100V and a continuous drain current of 72A @ 25°C.

  • Vds Drain-Source Voltage: 100V
  • Id Continuous Drain Current @ 25°C: 72A
  • Rds On @ Id, Vgs: 20mOhm @ 37.5A, 10V
  • Qg Gate Charge @ Vgs: 260 nC @ 10V
  • Input Capacitance @ Vds: 4500pF @ 25V
  • Vgs Gate-Source Voltage: ±20V
  • Operating Temperature: -55°C ~ 150°C
  • Package: ISOPLUS220™
