IXTA3N120-TRL IXYS – Price, Stock & Datasheet

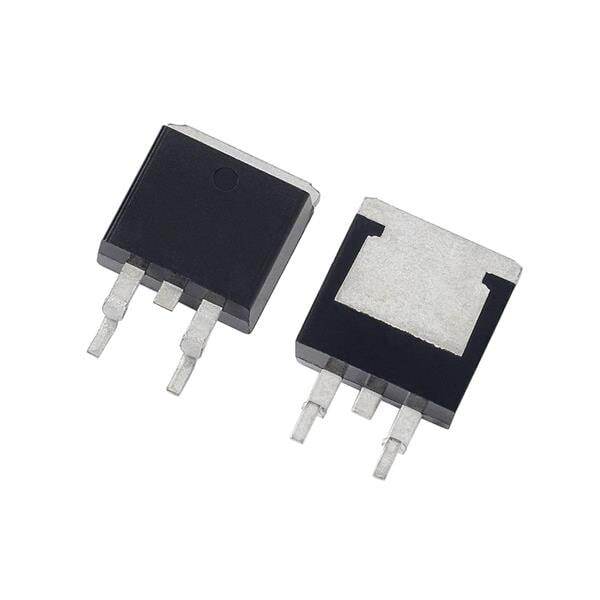

Same model may have multiple batches, images only for reference.

IXTA3N120-TRL

Part No IXTA3N120-TRL
Manufacturer IXYS
Catalog TRANSISTORS
Description MOSFETs IXTA3N120 TRL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer IXYS
Technology Si
Mounting Style SMD/SMT
Package / Case D2PAK-3 (TO-263-3)
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 1.2 kV
Id - Continuous Drain Current 3 A
Rds On - Drain-Source Resistance 4.5 Ohms
Vgs - Gate-Source Voltage - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage 2.5 V
Qg - Gate Charge 42 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 200 W
Channel Mode Enhancement
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Configuration Single
Transistor Type 1 N-Channel
Brand IXYS
Forward Transconductance - Min 1.5 S
Fall Time 18 ns
Product Type MOSFETs
Rise Time 15 ns
Standard Pack Qty 800
Subcategory Transistors
Typical Turn-Off Delay Time 32 ns
Typical Turn-On Delay Time 17 ns
Ultra Librarian 3D Model Ultra Librarian IXTA3N120-TRL CAD Model
