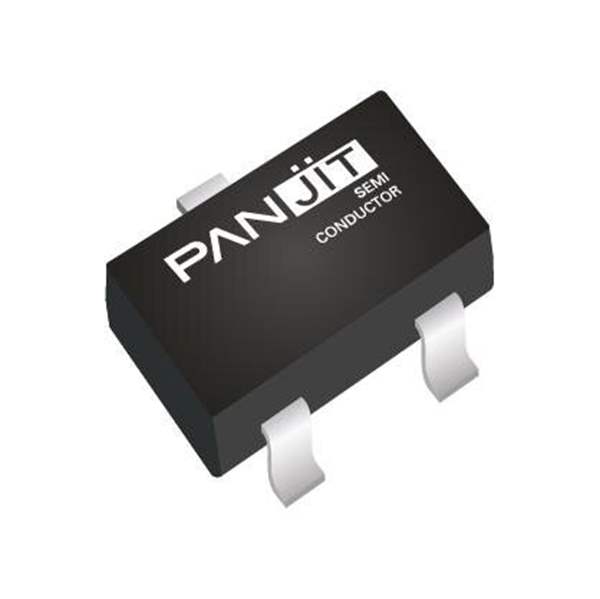

PJA3412_R1_00001

Part No PJA3412_R1_00001
Manufacturer Panjit
Catalog TRANSISTORS
Description MOSFETs 20V N-Channel Enhancement Mode MOSFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panjit
Technology Si
Mounting Style SMD/SMT
Package / Case SOT-23-3
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 20 V
Id - Continuous Drain Current 4.1 A
Rds On - Drain-Source Resistance 56 mOhms
Vgs - Gate-Source Voltage - 12 V, + 12 V
Vgs th - Gate-Source Threshold Voltage 1.2 V
Qg - Gate Charge 4.6 nC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 1.25 W
Channel Mode Enhancement
Series NFET-20TMN
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Configuration Single
Transistor Type 1 N-Channel
Brand Panjit
Fall Time 10 ns
Product Type MOSFETs
Rise Time 47 ns
Standard Pack Qty 3000
Subcategory Transistors
Typical Turn-Off Delay Time 18 ns
Typical Turn-On Delay Time 4 ns
Ultra Librarian 3D Model Ultra Librarian PJA3412_R1_00001 CAD Model
