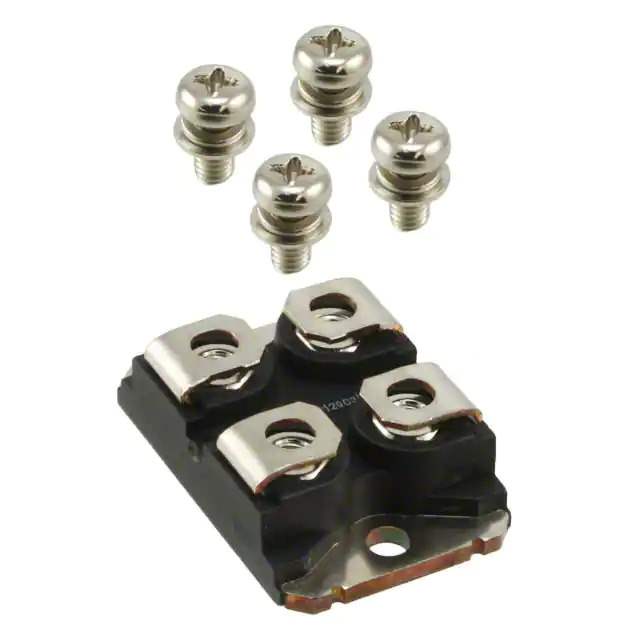

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - IGBT Modules
Mfr IXYS
Series GenX3™
Package Tube
Product Status Obsolete
IGBT Type PT
Configuration Single
Voltage - Collector Emitter Breakdown (Max) 300 V
Current - Collector (Ic) (Max) 400 A
Power - Max 735 W
Vce(on) (Max) @ Vge, Ic 1.15V @ 15V, 100A
Current - Collector Cutoff (Max) 50 µA
Input Capacitance (Cies) @ Vce 19 nF @ 25 V
Input Standard
NTC Thermistor No
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227B
Base Product Number IXGN400
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
California Prop 65 Warning Information
Win Source Part Number 876107-IXGN400N30A3
Ultra Librarian 3D Model Ultra Librarian IXGN400N30A3 CAD Model

Description

The IXGN400N30A3 is an IGBT module from the GenX3™ series, designed for high-power applications in the field of discrete semiconductor products.

  • Configuration: single
  • Maximum Power Rating: 735 W
  • Voltage Breakdown: 300 V
  • Maximum Collector Current: 400 A
  • Vce(on): 1.15V @ 15V, 100A
  • Mounting: chassis mounting
  • Package: SOT-227-4, miniBLOC package
  • Operating Temperature Range: -55°C to 150°C
  • Status: currently obsolete
