Same model may have multiple batches, images only for reference.

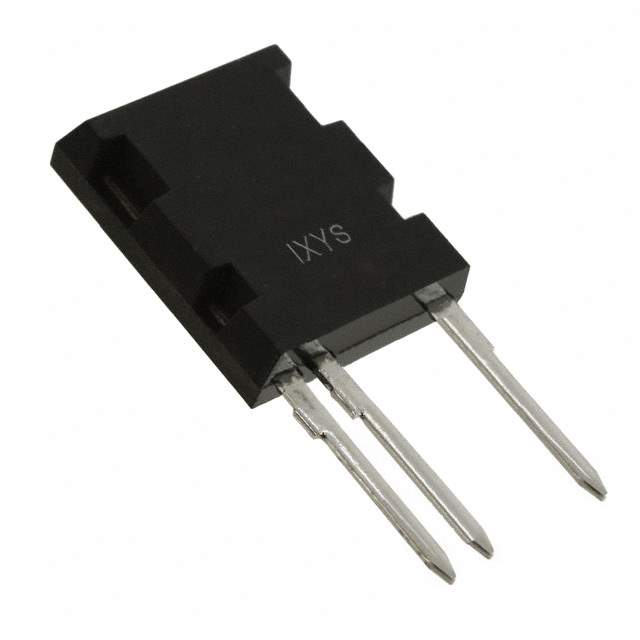

IXEL40N400 Real Image
Same model may have multiple batches, images only for reference.

IXEL40N400

Part No IXEL40N400
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 4000V 90A 380W ISOPLUSI5 / IGBT 4000 V 90 A 380 W Through Hole ISOPLUSi5-Pak™
Datasheet
IXEL40N400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Package Tube
Voltage - Collector Emitter Breakdown (Max) 4000 V
Current - Collector (Ic) (Max) 90 A
Current - Collector Pulsed (Icm) 400 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 40A
Power - Max 380 W
Switching Energy 55mJ (on), 165mJ (off)
Input Type Standard
Gate Charge 275 nC
Td (on/off) @ 25°C 160ns/630ns
Test Condition 2800V, 40A, 33Ohm, 15V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case ISOPLUSi5-Pak™
Supplier Device Package ISOPLUSi5-Pak™
Base Product Number IXEL40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names Q6074758
Standard Package 25
Win Source Part Number 1066171-IXEL40N400
Ultra Librarian 3D Model Ultra Librarian IXEL40N400 CAD Model

Description

The IXEL40N400 is a high-performance IGBT designed for use in Discrete Semiconductor Products.

  • Maximum Power: 380 W
  • Collector-Emitter Breakdown Voltage: 4000 V
  • Current Collector (Max): 90 A
  • Pulsed Collector Current: 400 A
  • Switching Energy (On): 55mJ
  • Switching Energy (Off): 165mJ
  • Gate Charge: 275 nC
  • Mounting: Through-hole
  • Package: ISOPLUSi5-Pak™
  • Operating Temperature: -40°C to 150°C (TJ)
  • REACH: Unaffected by REACH
