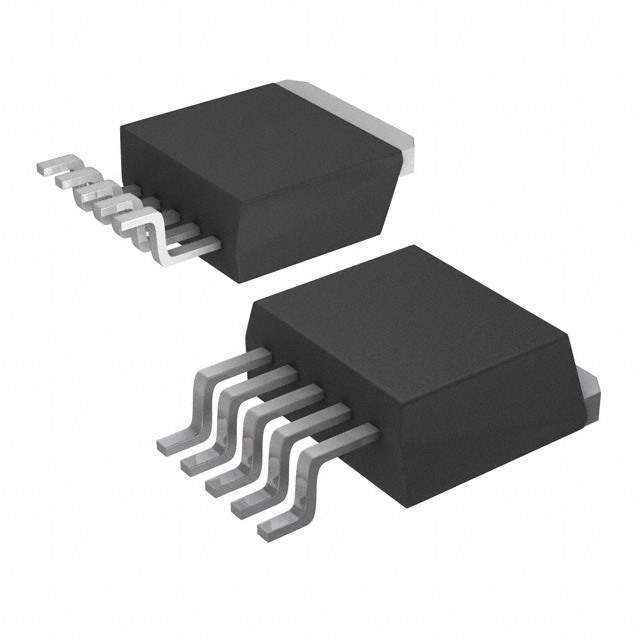

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube
Status Obsolete
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3.5V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Inverting
Rise / Fall Time 10ns, 10ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263 (D2Pak)
Family Part Number IXD*409
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1190979-IXDI409YI
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXDI409YI CAD Model

Description

IXYS IXDI409YI is an inverting input type single channel low-side driven configuration driver IC designed for IGBT, N-Channel, and P-Channel MOSFET gates.

  • Input Type: Inverting
  • Channel: Single
  • Configuration: Low-Side Driven
  • Gate: IGBT, N-Channel, and P-Channel MOSFET
  • Package: TO-263 (D2Pak) with 5 leads and tab
  • Logic Voltage: 0.8V to 3.5V
  • Current Peak Output (Source): 9A
  • Current Peak Output (Sink): 9A
  • Rise and Fall Time: 10ns
  • Temperature Range: -55°C to 150°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
