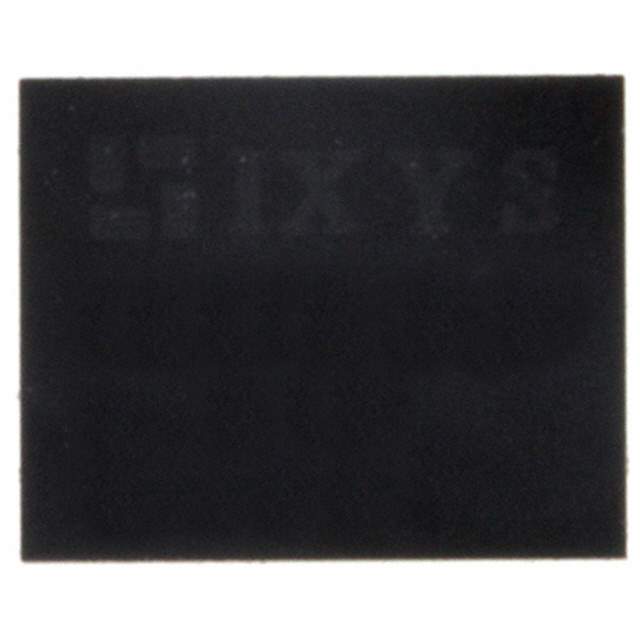

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Bulk
Status Obsolete
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 30V
Logic Voltage - VIL, VIH 0.8V, 2.4V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Non-Inverting
Rise / Fall Time 25ns, 23ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 6-VDFN Exposed Pad
Supplier Device Package 6-DFN (4x5)
Family Part Number IXD*509
Manufacturer Pack Quantity 56
MSL Level 1 (Unlimited)
Win Source Part Number 1190942-IXDD509D1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXDD509D1 CAD Model

Description

The IXYS IXDD509D1 is a single channel low-side driver integrated circuit designed to drive IGBT, N-Channel, and P-Channel MOSFETs. The driver has a non-inverting input type and can deliver a peak output current of 9A for both source and sink.

  • Input Type: Non-Inverting
  • Peak Output Current: 9A (Source and Sink)
  • Logic Voltage Range: 0.8V to 2.4V
  • Supply Voltage Range: 4.5V to 30V
  • Rise Time: 25ns
  • Fall Time: 23ns
  • Package: 6-DFN (4x5)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C to 150°C
  • Product Status: Obsolete
  • Supply and Demand: Limited
