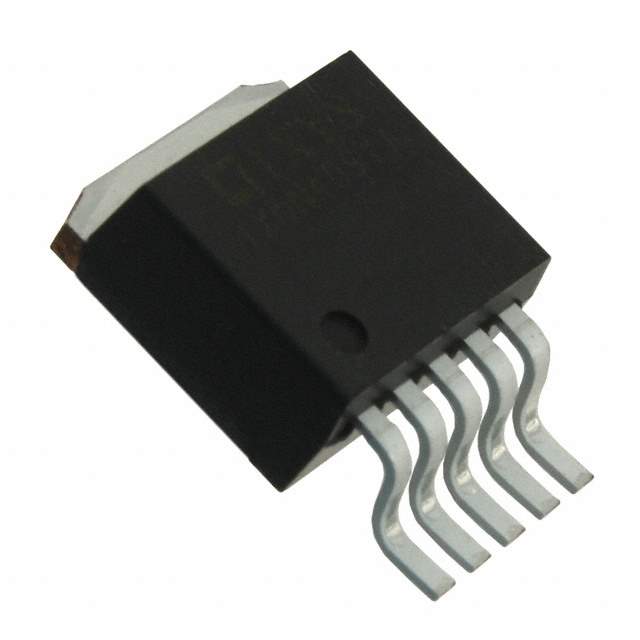

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube
Status Obsolete
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3.5V
Current - Peak Output (Source, Sink) 9A, 9A
Input Type Non-Inverting
Rise / Fall Time 10ns, 10ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263 (D2Pak)
Family Part Number IXD*409
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1190935-IXDD409YI
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXDD409YI CAD Model

Description

The IXYS IXDD409YI is an integrated circuit with a single channel type and driven configuration of low-side.

  • Gate Type: IGBT, N-Channel, P-Channel MOSFET
  • Logic Voltage: VIL=0.8V and VIH=3.5V
  • Peak Output Current: 9A
  • Rise/Fall Time: 10ns/10ns
  • Package: TO-263 (D2Pak)
  • Supply: Tube
  • Supply and Demand Status: limited and is obsolete
  • Manufacturer Pack Quantity: 50
  • MSL Level: 1 (unlimited)
