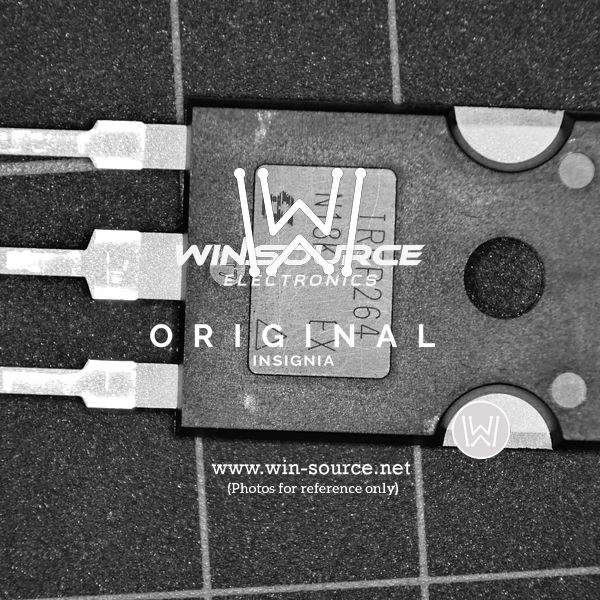

IRFP264 Real Image IRFP264 Real Image
Same model may have multiple batches, images only for reference.
IRFP264 Real Image IRFP264 Real Image
IRFP264 Real Image IRFP264 Real Image
Same model may have multiple batches, images only for reference.

IRFP264

Part No IRFP264
Manufacturer IXYS
Catalog FETs - Single
Description Power MOSFET(Vdss=250V, Rds(on)=0.075ohm, Id=38A) | MOSFET N-CH 250V 38A TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Status Obsolete
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 250V
Id - Continuous Drain Current 38A
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Maximum) at Id, Vgs 75mOhm at 23A, 10V
Gate Source Voltage(th) (Maximum) at Id 4V at 250μA
Gate Charge (Qg) (Maximum) at Vgs 210nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 4800pF at 25V
Power Dissipation (Maximum) 280W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Supplier Device Package TO-247AD
Manufacturer Package TO-247-3
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1187776-IRFP264
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IRFP264 CAD Model

Description

The 1187776-IRFP264 is an N-channel MOSFET transistor manufactured by IXYS.

  • Drain-Source Breakdown Voltage: 250V
  • Continuous Drain Current: 38A
  • Maximum On-Resistance: 75mOhm @ 23A and 10V
  • Gate-Source Voltage Threshold: 4V @ 250μA
  • Gate Charge: 210nC @ 10V
  • Maximum Gate-Source Voltage: ±20V
  • Input Capacitance: 4800pF @ 25V
  • Mounting Style: Through-hole
  • Supplier Device Package: TO-247AD
  • Status: Obsolete
  • Supply and Demand: Limited
  • Manufacturer: IRF
  • Manufacturer Package: TO-247-3
  • Maximum Power Dissipation: 280W
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (Unlimited)
