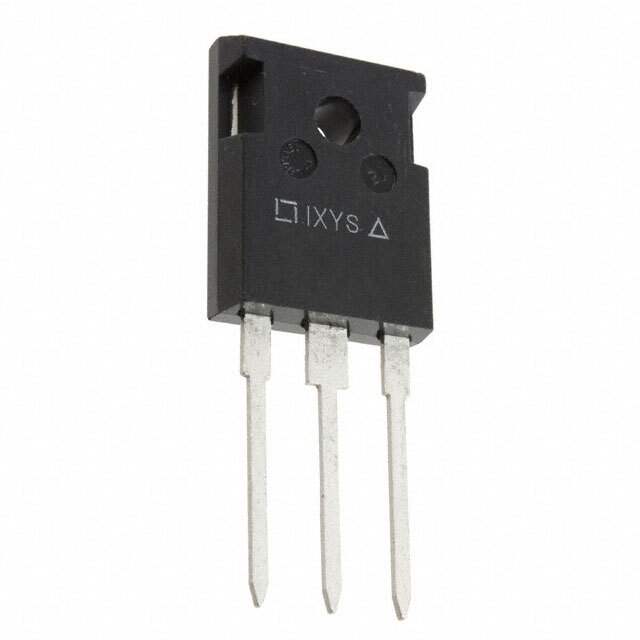

DSSK70-0015B Real Image
Same model may have multiple batches, images only for reference.

DSSK70-0015B

Part No DSSK70-0015B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 15V TO247AD
Datasheet
DSSK70-0015B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 15V
Current - Average Rectified (Io) (per Diode) 35A
Voltage - Forward (Vf) (Max) @ If 450mV @ 35A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 20mA @ 15V
Operating Temperature - Junction -55°C to 150°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 203489-DSSK70-0015B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSSK70-0015B CAD Model

Description

DSSK70-0015B High-Voltage Diode

The DSSK70-0015B is tailored for high-voltage applications, offering high reliability and efficiency. Its robust construction makes it suitable for demanding circuits.

  • High Voltage Support: Ideal for high-voltage rectification tasks, ensuring secure and effective operation.
  • Long Lifespan: Constructed to deliver a long service life with minimal risk of failure.
  • Optimal Conductivity: Ensures excellent current flow to support high-demand operations.

Applications

  • High-Voltage Converter Systems
  • Industrial Automation
  • HVAC Systems

Benefits: Such high-voltage capabilities support rigorous electrical environments, enhancing overall system reliability.
