Same model may have multiple batches, images only for reference.

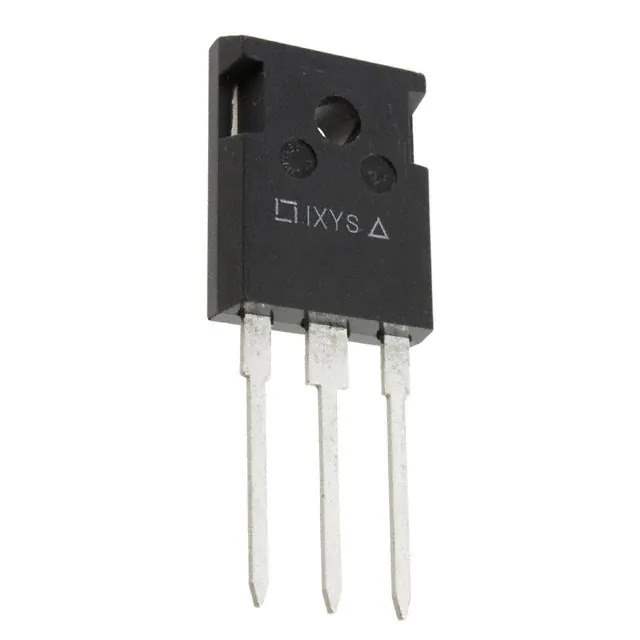

DSSK60-0045A Real Image
Same model may have multiple batches, images only for reference.

DSSK60-0045A

Part No DSSK60-0045A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Package Tube
Product Status Discontinued
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 690 mV @ 30 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 45 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number DSSK60
Standard Package 30 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 587318-DSSK60-0045A
Ultra Librarian 3D Model Ultra Librarian DSSK60-0045A CAD Model

Description

The diode array with the part number 587318-DSSK60-0045A is a fast recovery diode array designed for rectification applications.

  • Maximum DC Reverse Voltage (Vr): 45V
  • Maximum Forward Voltage (Vf): 690mV @ 30A
  • Reverse Recovery Time (trr): 35ns
  • Average Rectified Current (Io) per Diode: 30A
  • Diode Configuration: 1 pair common cathode
  • Mounting: Through-Hole
  • Package: TO-247-3
  • Package Type: Tube
  • Quantity per Tube: 30 pcs
  • Operating Temperature: -55°C to 175°C
  • Manufacturer: IXYS
  • Status: Discontinued
