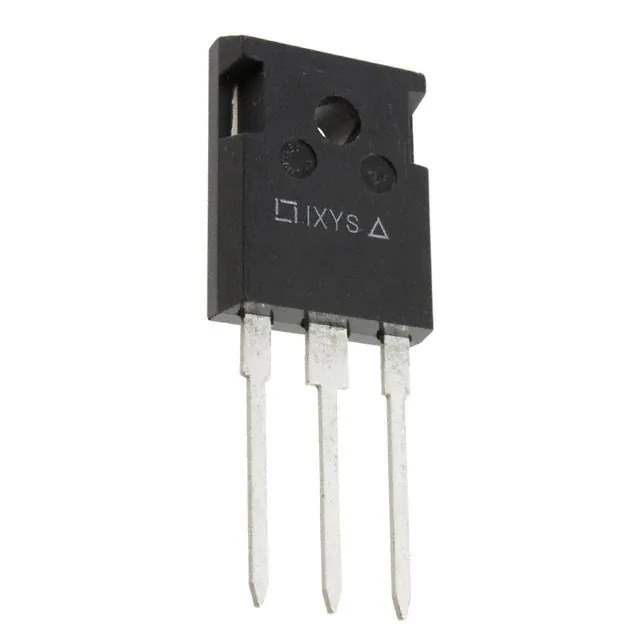

DSSK50-0025B Real Image
Same model may have multiple batches, images only for reference.

DSSK50-0025B

Part No DSSK50-0025B
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 25V TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr IXYS
Package Tube
Product Status Discontinued
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 25 V
Current - Average Rectified (Io) (per Diode) 25A
Voltage - Forward (Vf) (Max) @ If 510 mV @ 25 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12 mA @ 25 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD
Base Product Number DSSK50
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 587317-DSSK50-0025B
Ultra Librarian 3D Model Ultra Librarian DSSK50-0025B CAD Model

Description

The DSSK50-0025B is a diode array designed for rectification applications. It belongs to the category of discrete semiconductor products and specifically falls under the diodes - rectifiers - diode arrays segment.

  • Product Category: Discrete Semiconductor Products
  • Product Segment: Diodes - Rectifiers - Diode Arrays
  • Package: Tube (30 pieces)
  • Recovery Speed: Fast Recovery (< 500ns)
  • Forward Voltage: 510mV @ 25A
  • Diode Type: Schottky Diode Array
  • Maximum Reverse Voltage: 25V
  • Reverse Leakage Current: 12mA @ 25V
  • Operating Temperature: -55°C to 150°C
  • Mounting Type: Through Hole
  • Package Type: TO-247-3
  • Product Status: Discontinued
