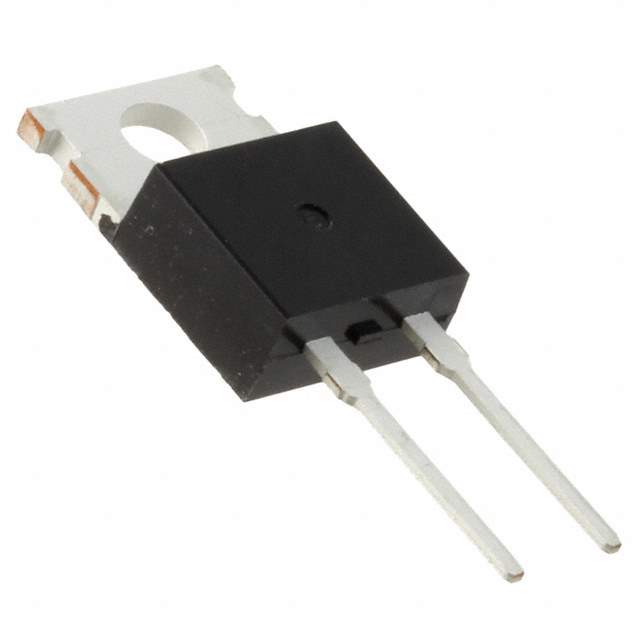

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 840mV @ 10A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 100V
Mounting Style Through Hole
Package TO-220-2
Manufacturer Package TO-220AC
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 1169964-DSS10-01A
Manufacturer Homepage www.ixys.com
Family Name DSS10-01A
Introduction Date October 25, 2000
ECCN EAR99
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSS10-01A CAD Model

Description

The IXYS DSS10-01A is a Schottky diode that is designed for use in discrete semiconductor products.

  • Current Rating: 10A
  • Voltage Rating: 100V
  • Forward Voltage: 840mV @ 10A
  • Reverse Leakage Current: 300μA @ 100V
  • Recovery Speed: 200mA (Io)
  • Mounting Style: Through Hole
  • Supply and Demand: Balanced
