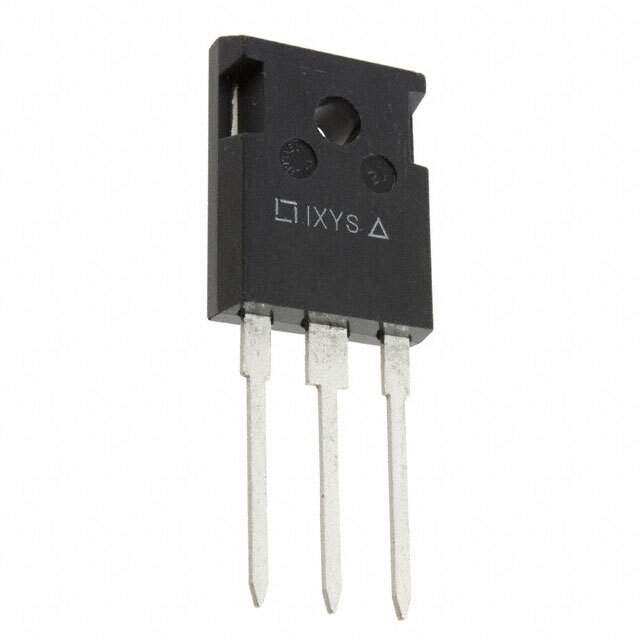

DSEC30-02A Real Image
Same model may have multiple batches, images only for reference.

DSEC30-02A

Part No DSEC30-02A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description HiPerFRED Epitaxial Diode with common cathode and soft recovery
Datasheet
DSEC30-02A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerFRED
Packaging Tube
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 200V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) @ If 1.05V @ 15A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 25ns
Current - Reverse Leakage @ Vr 100μA @ 200V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-247AD
Win Source Part Number 1169810-DSEC30-02A
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Family Name DSEC30-02A
Introduction Date October 30, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian DSEC30-02A CAD Model

Description

IXYS 1169810-DSEC30-02A is a high-performance diode that belongs to the HiPerFRED series.

  • Package: tube
  • Mounting: through the hole
  • Recovery Speed: 200mA (Io)
  • Reverse Recovery Time (trr): 25ns
  • Current - Average Rectified (Io) (per diode): 15A
  • Voltage - DC Reverse (Vr) (Maximum): 200V
  • Current - Reverse Leakage @ Vr: 100μA @ 200V
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Manufacturer Package: TO-247AD
  • Voltage - Forward (Vf) (Maximum) @ If: 1.05V @ 15A
  • Description: designed to meet the requirements of various electronic devices and can be used in different applications
