Same model may have multiple batches, images only for reference.

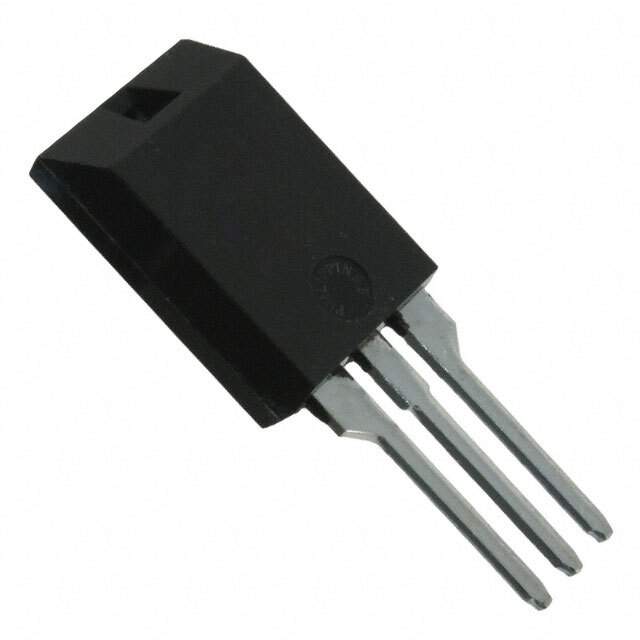

DSEC29-06AC Real Image
Same model may have multiple batches, images only for reference.

DSEC29-06AC

Part No DSEC29-06AC
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY 600V 15A ISOPLUS220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 41 Weeks
Features Diode Array 1 Pair Common Cathode Standard 600 V 15A Through Hole ISOPLUS220™
Manufacturer IXYS
Series HiPerFRED™
Package Tube
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package ISOPLUS220™
Case / Package ISOPLUS220™
Family Name DSEC29
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 50
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917594-DSEC29-06AC
Ultra Librarian 3D Model Ultra Librarian DSEC29-06AC CAD Model

Description

The IXYS HiPerFRED™ DSEC29-06AC Diode Array is a 1 Pair Common Cathode Standard diode with a maximum voltage rating of 600 V and a maximum current rating of 15A.

  • Voltage Rating: 600 V
  • Current Rating: 15A
  • Recovery Speed: less than 500ns
  • Current Handling: > 200mA
  • Package: ISOPLUS220™
  • Mounting: through hole
  • Package Type: tube
  • Family: DSEC29
  • Category: Discrete Semiconductor Products
  • Supply and Demand: balanced
  • Package Size: 50
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 41 weeks
  • REACH: unaffected
  • HTSUS code: 8541.10.0080
