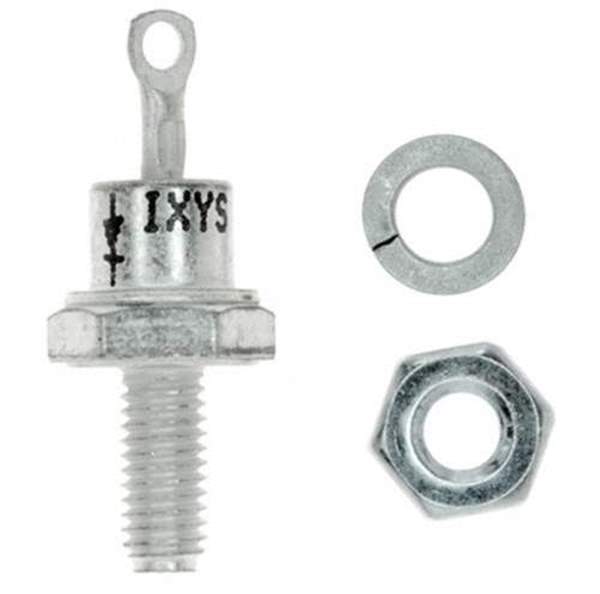

DSA9-12F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr IXYS
Package Bulk
Product Status Obsolete
Diode Type Avalanche
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 11A
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 36 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 3 mA @ 1200 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA
Operating Temperature - Junction -40°C ~ 180°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1056262-DSA9-12F
Ultra Librarian 3D Model Ultra Librarian DSA9-12F CAD Model

Description

The DSA9-12F is a rectifier diode from IXYS.

  • Maximum Reverse Voltage: 1200V.
  • Maximum Forward Voltage: 1.4V @ 36A.
  • Current Average Rectified: 11A.
  • Reverse Leakage Current: 3mA @ 1200V.
  • Package: Packaged in a DO-203AA package.
  • Mounting: Mounted on a chassis or stud.
  • Operating Temperature Range: -40°C to 180°C.
  • ECCN: EAR99.
  • REACH: REACH unaffected.
  • Alternative Parts: VS-1N3891 and VS-1N3893 are alternative parts for this device.
