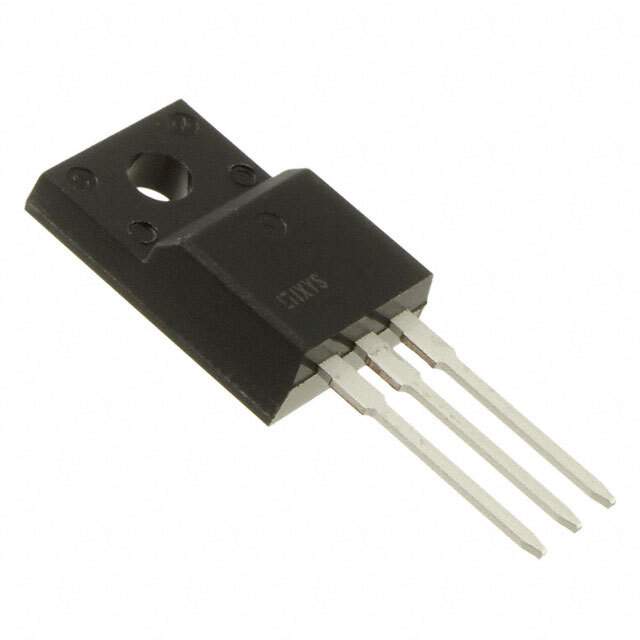

DPG20C300PN Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 1.27V @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 1μA @ 300V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-220ABFP
Win Source Part Number 1033969-DPG20C300PN
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DPG20C300PN CAD Model

Description

The supply and demand status is balanced.

  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 300V
  • Voltage - Forward (Vf) (Max) @ If: 1.27V @ 10A
  • Packaging: Tube/Rail
  • Mounting Type: Through Hole
  • Reverse Recovery Time (trr): 35ns
  • Current - Reverse Leakage @ Vr: 1μA @ 300V
  • Operating Temperature - Junction: -55°C to 175°C
  • Diode Configuration: 1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode): 10A
  • Speed (Frequency): Fast Recovery = 200mA (Io)
