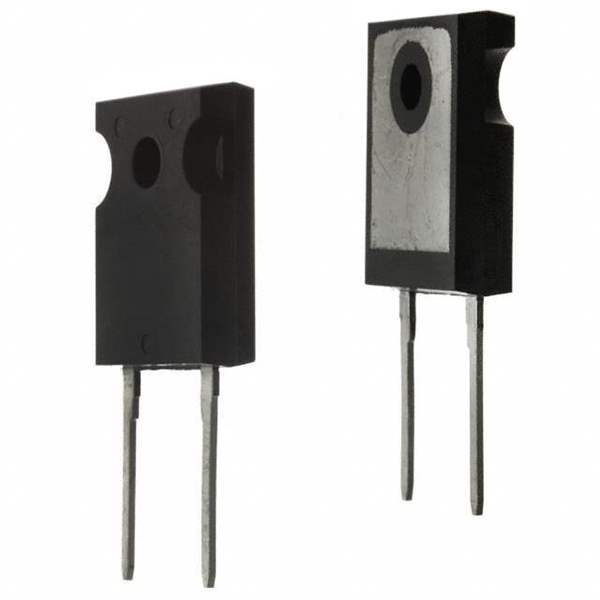

DH60-18A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1800V (1.8kV)
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Max) @ If 2.04V @ 60A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 230ns
Current - Reverse Leakage @ Vr 200μA @ 1800V
Capacitance @ Vr, F 32pF @ 1200V, 1MHz
Mounting Through Hole
Case / Package TO-247AD
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 085796-DH60-18A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DH60-18A CAD Model

Description

Product Overview

The DH60-18A component offers advanced thermal management and electrical performance, suitable for high-demand applications. Its robust construction and cutting-edge technology ensure reliable operation in diverse environments.

Features and Benefits

  • Optimized design for peak electrical performance.
  • Effective heat dissipation for protection against thermal damage.
  • Enhanced durability for long-term reliability.

Applications and Projects

  • Automotive power systems
  • Telecommunications infrastructure
  • Industrial control systems

The DH60-18A is the go-to choice for engineers who require uncompromised quality and performance in their designs.
