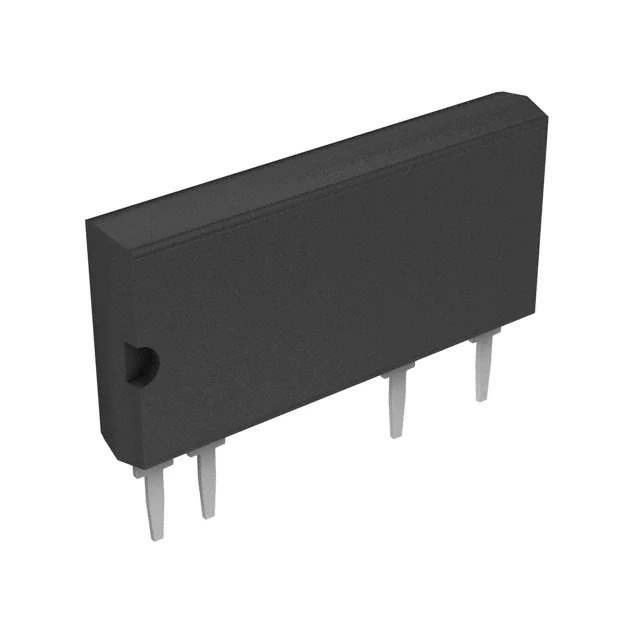

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 60 V
Load Current 2 A
On-State Resistance (Max) 300 mOhms
Termination Style PC Pin
Package / Case 8-SIP, 4 Leads
Supplier Device Package 4-SIP
Base Product Number CPC1906
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
California Prop 65 Warning Information
Win Source Part Number 580142-CPC1906Y
Ultra Librarian 3D Model Ultra Librarian CPC1906Y CAD Model

Description

The CPC1906Y is a solid state relay from the CPC series, specifically designed for various applications in the field of electronic components.

  • Termination Style: PC Pin
  • Package: Tube
  • Standard Package: 25 pieces
  • Input Voltage: 1.2VDC
  • Output Types: AC and DC
  • Relay Type: Single-pole, single-throw normally open
  • Maximum On-State Resistance: 300 mOhms
  • Load Current: Up to 2A
  • Voltage Load: 0V to 60V
  • Mounting Type: Through hole
  • Package: 8-SIP, 4 leads
  • Product Status: Active
  • Manufacturer: IXYS
