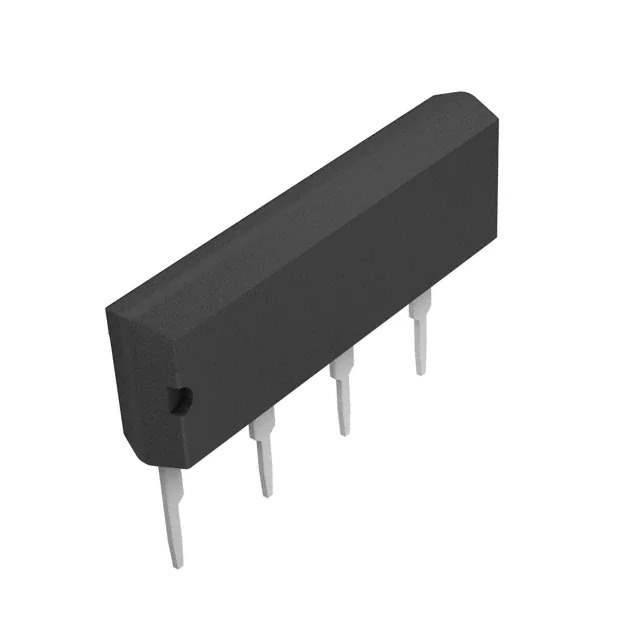

CPC1218Y Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr IXYS
Series CPC, OptoMOS®
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 3.75 ~ 12VDC
Voltage - Load 0 V ~ 60 V
Load Current 600 mA
On-State Resistance (Max) 1.1 Ohms
Termination Style PC Pin
Package / Case 8-SIP, 4 Leads
Supplier Device Package 4-SIP
Base Product Number CPC1218
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 580115-CPC1218Y
Ultra Librarian 3D Model Ultra Librarian CPC1218Y CAD Model

Description

The CPC1218Y is a solid-state relay from the CPC series by IXYS.

  • Type: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • On-State Resistance: 1.1 Ohms
  • Load Current: Up to 600 mA
  • Voltage Load: 0 V to 60 V
  • Voltage Input: 3.75 V to 12 VDC
  • Outputs: AC and DC
  • Mounting: Through-Hole
  • Package: 8-SIP, 4 leads
  • Supplied: Tube package with 25 pieces
  • MSL Level: unlimited
